Product Information

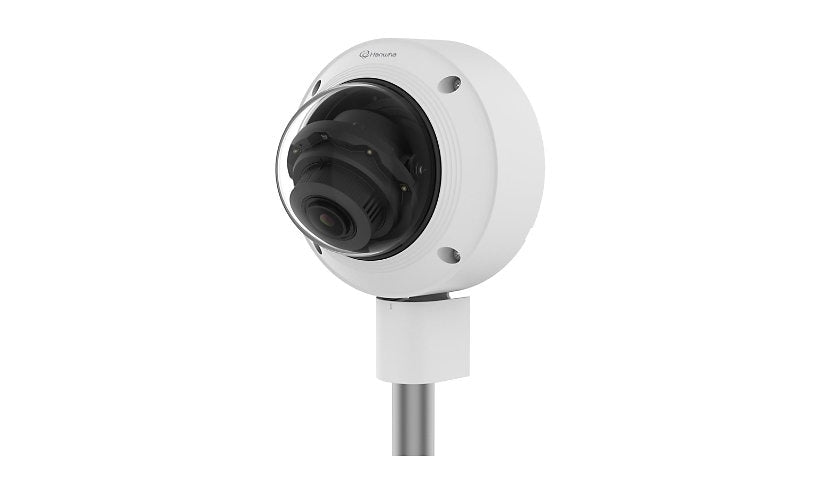

The Hanwha Vision Wisenet Q QNV-C9083R is a 4K (8 MP) vandal proof dome recording 3840 x 2160 at 30 fps with a 3.2 to 10.2 mm motorized autofocus lens (3.2x). AI detection covers loitering, intrusion and line crossing, with IR up to 98 ft, two way audio and alarm I/O, on PoE at 12.95 W. White.
Key Features
- 4K, 8 MP at 30 fps
- 3.2 to 10.2 mm motorized
- IR up to 98 ft
- AI detection
- Two way audio, alarm I/O
- PoE, 12.95 W
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNV-C9083R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Alarm function, Anti-flicker, Auto ICR, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Direction detection, Entrance / exit detection, Gain Control, Hallway View, Handover, Image flip, Image mirror, Intrusion detection, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE
Power Consumption Operational: 12.95 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (D, Max, Degree): 124
Angular Field of View (H, Max, Degree): 104
Angular Field of View (V, Max, Degree): 55
Focus Modes: Automatic
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 35
Auto Iris Control: DC
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -35 to +70
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 31
Angular Field of View (V, Min, Degree): 17
Camera Iris: Auto iris
Min Focus Distance: 4 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.006 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.06 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.1
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 786, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.3 inch
Width: 5.5 inch
Depth: 5.5 inch
Weight: 30.86 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
