Product Information

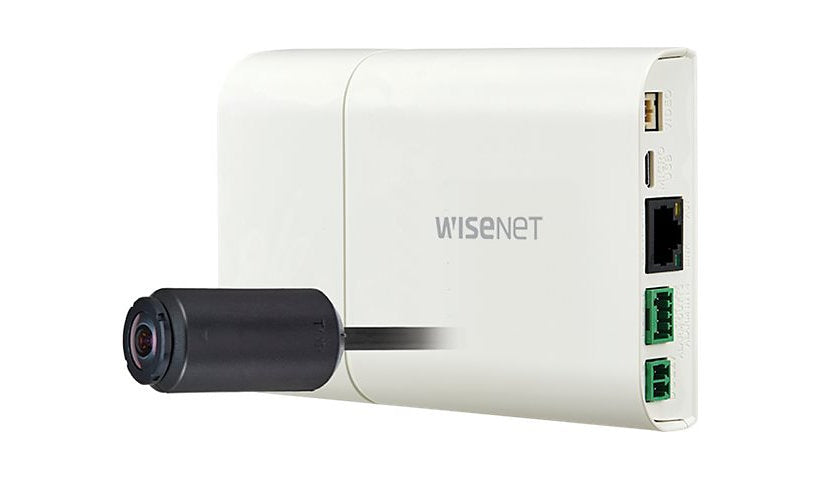

The Hanwha Vision Wisenet X XNB-H6240A is a 2 MP compact camera recording 1080p at up to 60 fps through a 2.4 mm lens with a 138 degree view. It has defog, image stabilization, two way audio, composite out and alarm I/O, and runs on 12 V DC or PoE Class 3 at 6.5 W. An ATM mount bracket (SBU-200) and 5 ft data cable are included.
Key Features
- 2 MP, up to 60 fps
- 2.4 mm, 138 degree view
- Defog, DIS
- Two way audio
- ATM mount bracket
- 12 V DC or PoE Class 3
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNB-H6240A
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Anti-flicker, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Directional Motion Detection, Dust Detection, Face Detection, Fog detection, Handover, Heat Map, Image flip, Image mirror, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, People counting, Pixel Counter Support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - 4 pin USB Type B
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 6.5 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 168
Sensor Pixels Effective (H): 1945
Sensor Pixels Effective (V): 1097
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 60 fps
Sensor Pixels Total (H): 1945
Sensor Pixels Total (V): 1109
Digital Zoom: 24
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 138
Angular Field of View (V, Min, Degree): 73
Min Focus Distance: 11.8 inch
Minimum Illumination: 0.45 lux - B&W - F2.0, 0.45 lux - color - F2.0
Total Pixels: 2,160,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711u, G.726
Audio Support Features: Two-way audio capability
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 1.1 inch
Width: 5.2 inch
Depth: 3.4 inch
Weight: 8.64 ounce
Included Items
Included Accessories: ATM mount bracket (SBU-200)
Cables: Data cable - 5 ft
