Product Information

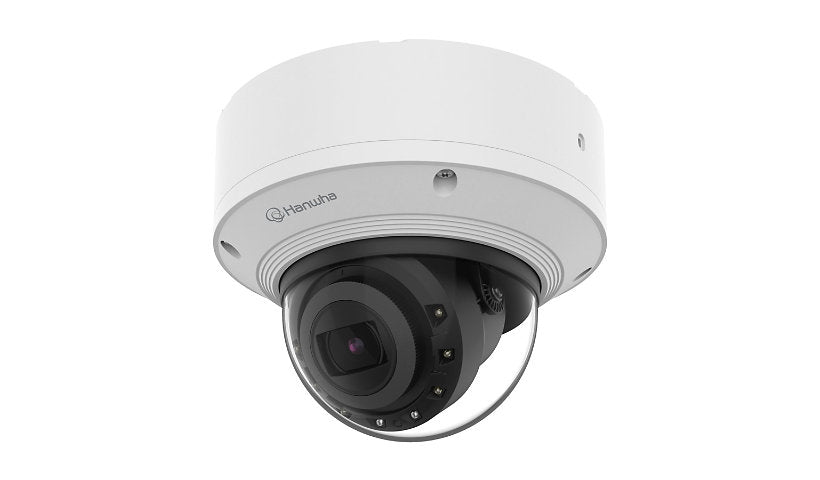

The Hanwha Vision Wisenet X XND-6083RV is a 2 MP AI dome rated for indoor use, recording 1080p at up to 120 fps with a 2.8 to 12 mm motorized lens (4.3x). It has IR up to 164 ft, two way audio, BNC out, alarm I/O, defog and digital image stabilization, and runs on 12 V DC or PoE+. White.
Key Features
- 2 MP, 1080p up to 120 fps
- 2.8 to 12 mm, 4.3x
- IR up to 164 ft
- Two way audio
- BNC out, alarm I/O
- 12 V DC or PoE+, indoor
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XND-6083RV
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Appearing / disappearing detection, Audio Detection, Auto ICR, Auto white balance, Backlight Compensation (BLC), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, Entrance / exit detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Shock detection, Sound classification, Tamper-detection, Unicast Streaming, User access log, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, QOS, RTCP, RTP, RTSP, SMTP, SNMP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 142.1
Angular Field of View (H, Max, Degree): 119.5
Angular Field of View (V, Max, Degree): 62.8
Focus Modes: Automatic, Manual
Infrared Distance: 164 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 32
Auto Iris Control: DC
Max Focal Length: 12 millimetre
Optical Zoom: 4.3
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 27.9
Angular Field of View (V, Min, Degree): 15.7
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.001 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec, 0.002 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec, 0.004 lux - B&W - F1.4 - 30 IRE - shutter 1/120 sec, 0.01 lux - color - F1.4 - 30 IRE - shutter 1/30 sec, 0.02 lux - color - F1.4 - 30 IRE - shutter 1/60 sec, 0.04 lux - color - F1.4 - 30 IRE - shutter 1/120 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.4-3.6
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 600
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.9 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.53 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
