Product Information

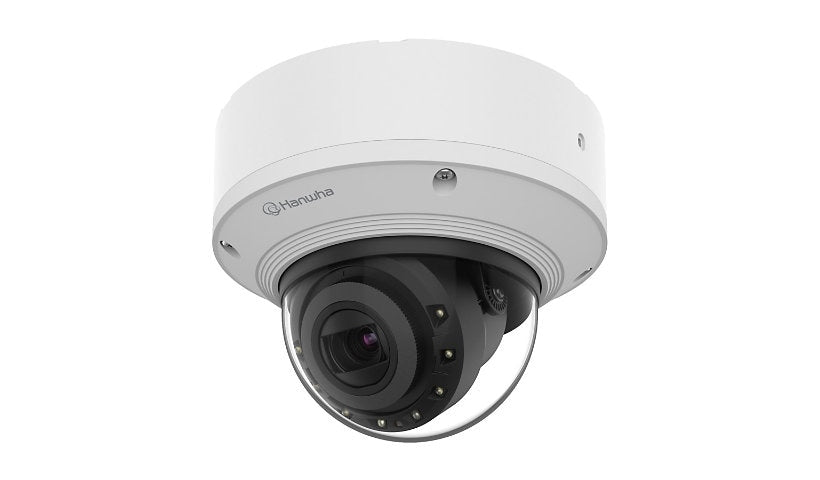

The Hanwha Vision WiseNet X XND-8082RV is a 6 MP dome recording 3328 x 1872 at 30 fps with a 2.8 to 8.4 mm F1.2 motorized lens (3x). It has IR up to 131 ft, two way audio, composite out, body detection, tamper detection and image stabilization, and runs on 12 V DC or PoE at 12.95 W. White.
Key Features
- 6 MP, 3328 x 1872
- 2.8 to 8.4 mm F1.2
- IR up to 131 ft
- Two way audio
- Body, tamper detection
- 12 V DC or PoE
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XND-8082RV
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Appearing / disappearing detection, Audio Detection, Backlight Compensation (BLC), Body detection, Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital auto tracking, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Extreme WDR, Face Detection, Gain Control, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE
Power Consumption Operational: 12.95 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 133
Angular Field of View (H, Max, Degree): 114
Angular Field of View (V, Max, Degree): 62
Focus Modes: Manual
Infrared Distance: 131 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 46.3
Auto Iris Control: DC, P-Iris
Max Focal Length: 8.4 millimetre
Optical Zoom: 3
Video Capture: 3328 x 1872 @ 30 fps
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 40.2
Angular Field of View (V, Min, Degree): 22.5
Camera Iris: Auto iris
Min Focus Distance: 27.6 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.2 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.2-2.8
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.9 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.53 lbs
