Product Information

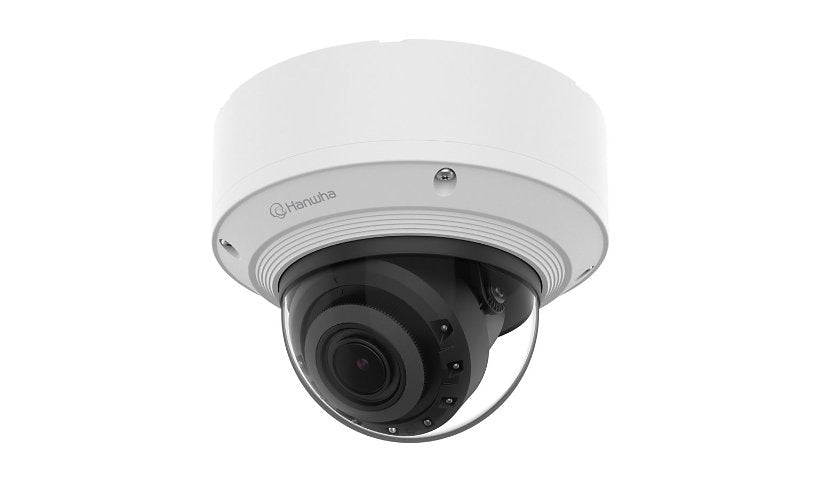

The Hanwha Vision WiseNet X XND-A8085RV is a 5 MP outdoor dome recording 2560 x 1920 at 30 fps with a 1/1.8 inch sensor and 3.3 to 9.3 mm autofocus lens with remote positioning. It has clothes color detection, IR up to 164 ft, audio, alarm I/O, USB-C and 8 GB flash, and runs on 12 V DC or PoE+ Class 4. White. TAA compliant.
Key Features
- 5 MP, 2560 x 1920
- 3.3 to 9.3 mm, autofocus
- IR up to 164 ft
- Clothes color detection
- Audio, alarm I/O
- 12 V DC or PoE+, TAA
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XND-A8085RV
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, FIPS 140-3, MSCHAPv2
Features: 0 - 355° rotation range, Alarm function, Aluminum enclosure, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Clothes color detection, Constant Bit Rate (CBR), Crowd counting, Defocus Detection, Defog, Digital Image Stabilization (DIS), Dual NPU architecture, Email upload, Entrance / exit detection, FTP alerts, Handover, Hard-coated dome, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, Lens Distortion Compensation (LDC), License plate detection, Loitering detection, Modular, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Queue management, Samsung Super Dynamic Range (SSDR), Slip & fall detection, Social distancing detection, Tampering detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle counting, Vehicle Detection, Virtual area, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, Syslog, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB-C - 24-pin USB-C
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 133
Angular Field of View (H, Max, Degree): 99
Angular Field of View (V, Max, Degree): 71
Focus Modes: Automatic
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 39
Auto Iris Control: P-Iris
Max Focal Length: 9.3 millimetre
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 31
Angular Field of View (V, Min, Degree): 23
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0.004 lux - B&W - 30 IRE - shutter 1/30 sec, 0.04 lux - color - 30 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.3
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 180, 320 x 240, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, OPUS
Touchscreen: No
Max Video Resolution: 2560 x 1920
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 100% RH
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Dome
Camera Mechanical Design: Pan / tilt
Dimensions and Weight
Height: 4.9 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.44 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
