Product Information

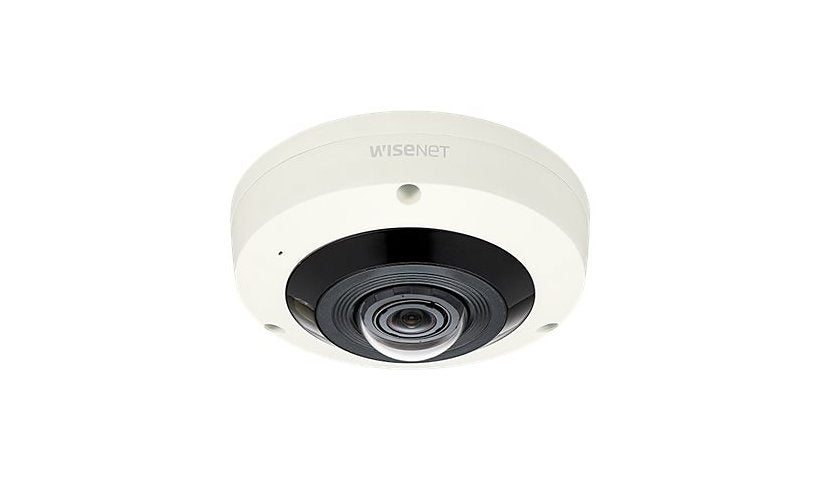

The Hanwha Vision Wisenet X XNF-8010RV is an outdoor vandal proof fisheye recording 2048 x 2048 at 30 fps through a 1.6 mm lens with a 192 degree view. It has IR up to 49 ft, a built in mic with two way audio, composite out and alarm I/O, and runs on 12 V DC or PoE Class 3 at 12.95 W. Ivory.
Key Features
- 2048 x 2048 at 30 fps
- 192 degree fisheye
- IR up to 49 ft
- Mic, two way audio
- Alarm I/O
- Outdoor vandal proof
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNF-8010RV
Packaged Quantity: 1
Color: Ivory
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defog, Digital Image Stabilization (DIS), Digital PTZ function, Fisheye lens, Heat Map, Image flip, Image mirror, IP address filtering, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, People counting, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SIP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out - 3.5 mm mono jack, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 12.95 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 192
Focus Modes: Automatic, Manual
Infrared Distance: 49 ft
Infrared LEDs: Yes
Video Signals: Composite video
Sensor Pixels Effective (H): 2048
Sensor Pixels Effective (V): 2048
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 2048 x 2048 @ 30 fps
Sensor Pixels Total (H): 3096
Sensor Pixels Total (V): 2094
Digital Zoom: 8
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 192
Min Focus Distance: 11.8 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 1.6 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1080 x 1080, 1280 x 1280, 1280 x 320, 1280 x 640, 1280 x 960, 1600 x 1200, 1920 x 480, 1920 x 960, 2048 x 1024, 2048 x 1536, 2048 x 2048, 2048 x 512, 480 x 480, 640 x 160, 640 x 320, 640 x 480, 640 x 640, 704 x 176, 704 x 352, 704 x 576, 720 x 720, 768 x 768, 800 x 600, 960 x 960
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, Two-way audio capability
Touchscreen: No
Max Video Resolution: 2048 x 2048
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.6 inch
Width: 5.7 inch
Depth: 5.7 inch
Weight: 27.69 ounce
