Product Information

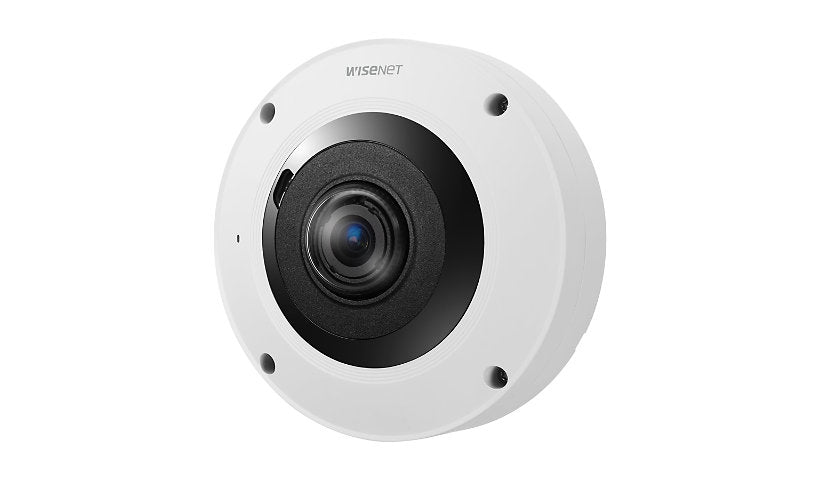

The Hanwha Vision Wisenet X XNF-9013RV is an outdoor 12 MP fisheye recording 3008 x 3008 at 30 fps through a 1.08 mm lens with a 187 degree view, dewarping on the fly. It has an AI engine for forensic search, Extreme WDR, audio in and out, BNC out and Wise IR II, and runs on 12 V DC or PoE Class 3. IR is 43 ft in the spec, the text says 42 inches, please confirm.
Key Features
- 12 MP, 3008 x 3008 at 30 fps
- 187 degree fisheye view
- AI engine, Extreme WDR
- Audio in/out, BNC out
- 12 V DC or PoE Class 3
- Outdoor, white
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNF-9013RV
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Entrance / exit detection, Extreme WDR, Fog detection, Gain Control, Handover, Hard-coated dome, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Sound classification, TPM 2.0 module, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseIR, WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Class 3
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Infrared Distance: 43 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 187
Video Capture: 3008 x 3008 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 187
Angular Field of View (V, Min, Degree): 187
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.39 lux - color - F2.2 - shutter 1/30 sec
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Lens Aperture: F/2.2
Min Focal Length: 1.08 millimetre
Sensor Size (metric): 11 mm (1/2.3")
Digital Video Capture Resolution: 1792 x 1344, 3008 x 3008, 3584 x 1792, 3584 x 2688, 3584 x 896, 480 x 480, 640 x 160, 640 x 320, 640 x 480
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Touchscreen: No
Max Video Resolution: 3008 x 3008
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.8 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 2.58 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
