Product Information

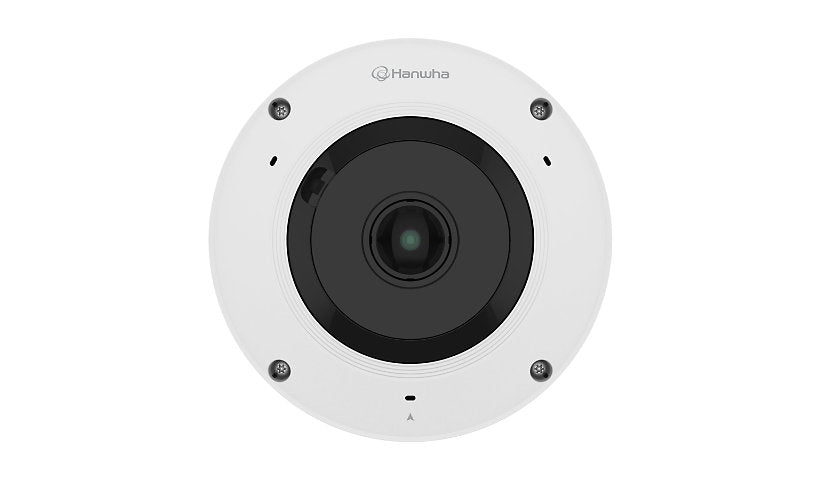

The Hanwha Vision WiseNet X XNF-A9014R is an indoor 12 MP fisheye recording 3584 x 2688 at 30 fps through a 1.76 mm F1.8 lens with a 185 degree view. It has three built in mics, IR up to 66 ft, AI analytics and 2 alarm I/O, and runs on 12 V DC or PoE+ Class 4 from -10 to 55 C. TAA compliant.
Key Features
- 12 MP, 3584 x 2688
- 185 degree fisheye
- Three built in mics
- IR up to 66 ft
- 2 alarm in, 2 alarm out
- Indoor, TAA compliant
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNF-A9014R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, FIPS 140-3, MSCHAPv2
Features: Alarm function, Aluminum enclosure, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Clothes color detection, Constant Bit Rate (CBR), Defog, Digital image rotation, Digital Image Stabilization (DIS), Digital PTZ function, Email upload, Entrance / exit detection, FTP alerts, Handover, Hard-coated dome, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, Loitering detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tampering detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, Syslog, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 185
Alarm Input Quantity: 2
Alarm Output Quantity: 2
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 185
Angular Field of View (V, Min, Degree): 185
Min Focus Distance: 19.7 inch
Minimum Illumination: 0.001 lux - B&W - 30 IRE - shutter 1/30 sec, 0.02 lux - color - 30 IRE - shutter 1/30 sec
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/1.6"
Image Sensor Type: CMOS
Lens Aperture: F/1.8
Min Focal Length: 1.76 millimetre
Sensor Size (metric): 15.9 mm (1/1.6")
Digital Video Capture Resolution: 1024 x 256, 1024 x 512, 1024 x 768, 1280 x 1280, 1280 x 320, 1280 x 640, 1280 x 960, 160 x 160, 1600 x 1600, 1792 x 1344, 1920 x 480, 1920 x 960, 2560 x 1280, 2560 x 1920, 2560 x 2560, 2560 x 640, 3008 x 3008, 320 x 240, 3536 x 3536, 3584 x 1792, 3584 x 2688, 3584 x 896, 480 x 480, 640 x 160, 640 x 320, 640 x 480, 640 x 640, 800 x 600, 800 x 800
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in three microphones
Touchscreen: No
Max Video Resolution: 3584 x 2688
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.4 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 2.2 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
