Product Information

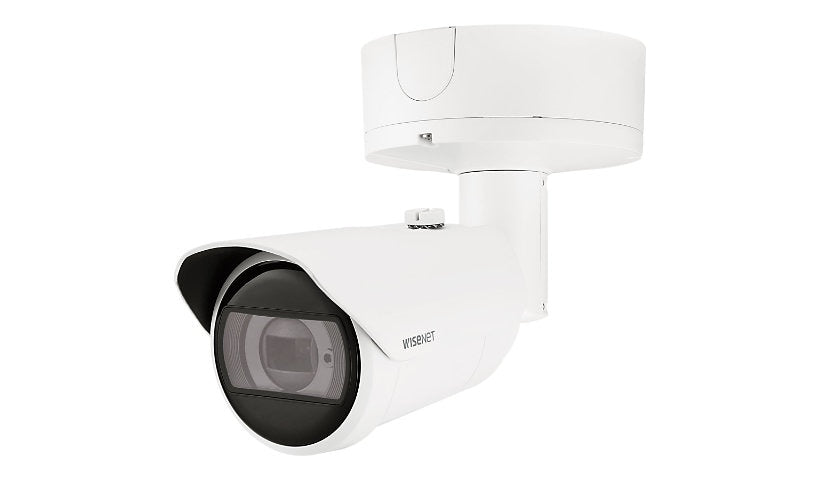

The Hanwha Vision Wisenet X XNO-8083R is a 6 MP bullet recording 3328 x 1872 at 30 fps with a 4.4 to 9.3 mm motorized lens (2.1x). It has extreme WDR, IR up to 164 ft, a gyroscope with image stabilization, defog, two way audio and composite out, and runs on 12 V DC or PoE+ Class 4 at 22.5 W. White.
Key Features
- 6 MP, 3328 x 1872
- 4.4 to 9.3 mm, 2.1x
- IR up to 164 ft
- Extreme WDR
- Gyroscope, DIS
- 12 V DC or PoE+
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNO-8083R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Appearing / disappearing detection, Audio Detection, Automatic Tracing White (ATW), Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Extreme Wide Dynamic Range (E-WDR), Fog detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), IP address filtering, Lens Distortion Compensation (LDC), Metadata, Motion Detection Technology, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Tamper-detection, Trusted Platform Module (TPM), Unicast Streaming, Variable Bit Rate (VBR), White balance, WiseIR, WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Power Consumption Operational: 22.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 137.5
Angular Field of View (H, Max, Degree): 112.1
Angular Field of View (V, Max, Degree): 58
Focus Modes: Manual
Infrared Distance: 164 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 54.6
Auto Iris Control: P-Iris
Max Focal Length: 9.3 millimetre
Optical Zoom: 2.1
Video Capture: 3328 x 1872 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 47.5
Angular Field of View (V, Min, Degree): 26.6
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 11.7 inch
Weight: 4.85 lbs
