Product Information

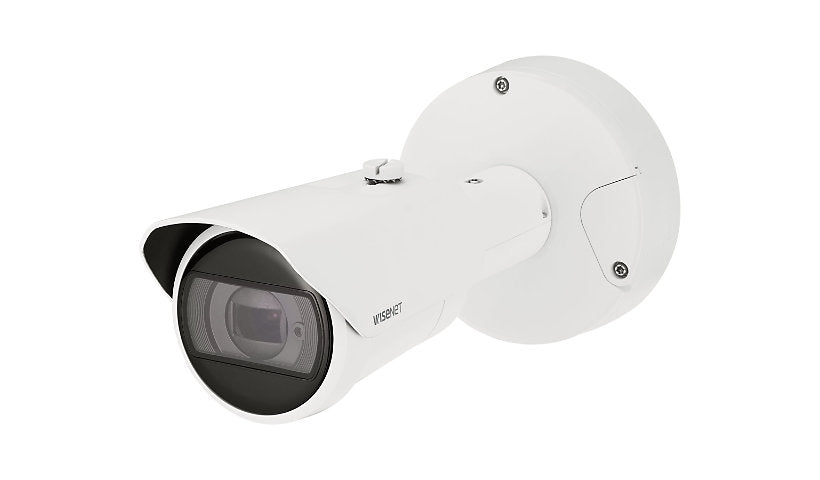

The Hanwha Vision Wisenet X XNO-C9083R is a 4K AI bullet recording 3840 x 2160 at 30 fps with a 1/1.8 inch sensor and 4.4 to 9.3 mm motorized lens (2.1x). Deep learning classifies people, vehicles, faces and plates, with IR up to 131 ft, two way audio and alarm I/O, on 12 V DC, 24 V AC or PoE at 11.2 W. White.
Key Features
- 4K at 30 fps
- 4.4 to 9.3 mm motorized
- AI object classification
- IR up to 131 ft
- Two way audio, alarm I/O
- 12 V DC, 24 V AC or PoE
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNO-C9083R
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Fog detection, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / AC 24 V / PoE Class 3
Power Consumption Operational: 11.2 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (D, Max, Degree): 137.5
Angular Field of View (H, Max, Degree): 112.1
Angular Field of View (V, Max, Degree): 58
Focus Modes: Automatic, Manual, Motorized
Infrared Distance: 131 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 54.6
Auto Iris Control: P-Iris
Max Focal Length: 9.3 millimetre
Optical Zoom: 2.1
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 3840 x 2160 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 47.5
Angular Field of View (V, Min, Degree): 26.6
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.3 - shutter 1/30 sec
Total Pixels: 8,294,400 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.4 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / waterproof / vandal-proof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 10.9 inch
Weight: 3.62 lbs
