Product Information

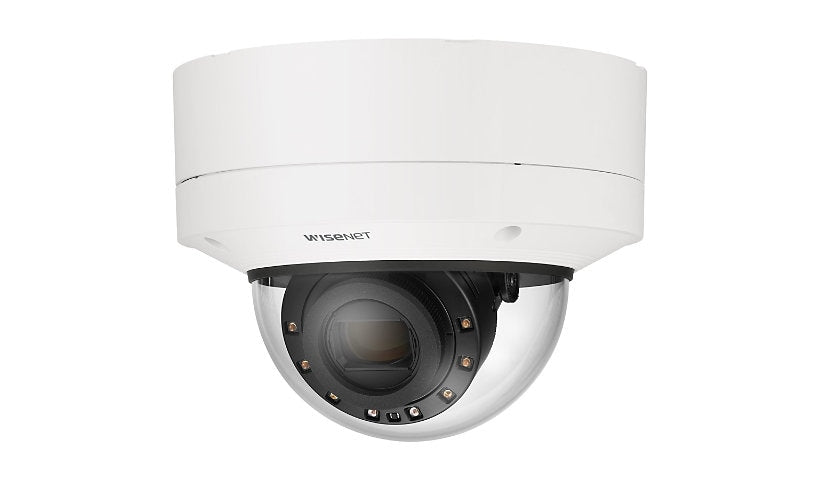

The Hanwha Vision WiseNet X XNV-6123R is a 2 MP outdoor dome recording 1080p at up to 120 fps with a 5.2 to 62.4 mm motorized lens giving 12x optical zoom. It has AI person detection, IR up to 295 ft, 300 presets, two way audio, composite out and alarm I/O, and runs on 12 V DC or PoE+. Corrosion proof and vandal proof, white.
Key Features
- 2 MP, up to 120 fps
- 12x optical zoom
- IR up to 295 ft
- AI person detection
- Two way audio, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-6123R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 300 preset positions, AI Person Detection, Appearing / disappearing detection, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, DORI coverage, E-mail alerts, Entrance / exit detection, Extreme WDR, Face Detection, Fog detection, Gain Control, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), Intrusion detection, IP address filtering, Lens Distortion Compensation (LDC), License plate detection, Loitering detection, Manual white balance, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Rotate mode, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Shock detection, Smart Codec, Sound classification, TPM 2.0 module, Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle Detection, Video analytics, Virtual Line detection, White balance, WiseIR, WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Device Type: PoE splitter
Required Voltage: DC 12 V / PoE+ volt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 54.58
Angular Field of View (V, Max, Degree): 32.19
Focus Modes: Automatic, Manual
Infrared Distance: 295 ft
Infrared LEDs: Yes
Video Signals: Composite video, USB
Auto Iris Control: DC
Max Focal Length: 62.4 millimetre
Optical Zoom: 12
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 120 fps
Digital Zoom: 32
Tilt: -45 to +80
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 5.3
Angular Field of View (V, Min, Degree): 3
Camera Iris: Auto iris
Min Focus Distance: 7 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.003 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.03 lux - color - F1.6 - 30 IRE - shutter 1/30 sec, 0.06 lux - B&W - F1.6 - 30 IRE - shutter 1/60 sec, 0.06 lux - color - F1.6 - 30 IRE - shutter 1/60 sec, 0.12 lux - B&W - F1.6 - 30 IRE - shutter 1/120 sec, 0.12 lux - color - F1.6 - 30 IRE - shutter 1/120 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.0
Min Focal Length: 5.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264H, H.264M, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711.8, G.711u, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Corrosion-proof / dustproof / waterproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 5.4 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 4.7 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
