Product Information

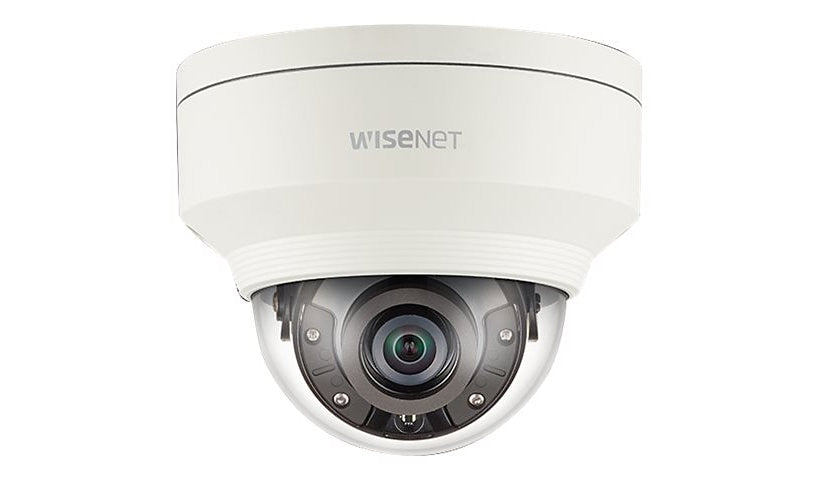

The Hanwha Vision Wisenet X XNV-8020R is an outdoor vandal proof dome recording up to 2560 x 1920 (5 MP) at 30 fps through a 3.7 mm fixed lens with a 97.5 degree view. It has 120 dB WDR, defog, IR up to 98 ft, two way audio, composite out and alarm I/O, and runs on 12 V DC or PoE at 9 W. Ivory. Total pixels are listed as 6 MP.
Key Features
- 5 MP, 2560 x 1920
- 3.7 mm, 97.5 degree view
- IR up to 98 ft
- 120 dB WDR, defog
- Two way audio, alarm I/O
- 12 V DC or PoE, ivory
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-8020R
Packaged Quantity: 1
Color: Ivory
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE
Power Consumption Operational: 9 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Focus Modes: Manual
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: Composite video
Sensor Pixels Effective (H): 2616
Sensor Pixels Effective (V): 1976
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 2560 x 1920 @ 30 fps
Sensor Pixels Total (H): 3096
Sensor Pixels Total (V): 2094
Digital Zoom: 24
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 354
Angular Field of View (H, Min, Degree): 97.5
Angular Field of View (V, Min, Degree): 71.9
Min Focus Distance: 15.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.16 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.7 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, MJPEG, MPEG-4
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2560 x 1920
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / waterproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.8 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 21.69 ounce
