Product Information

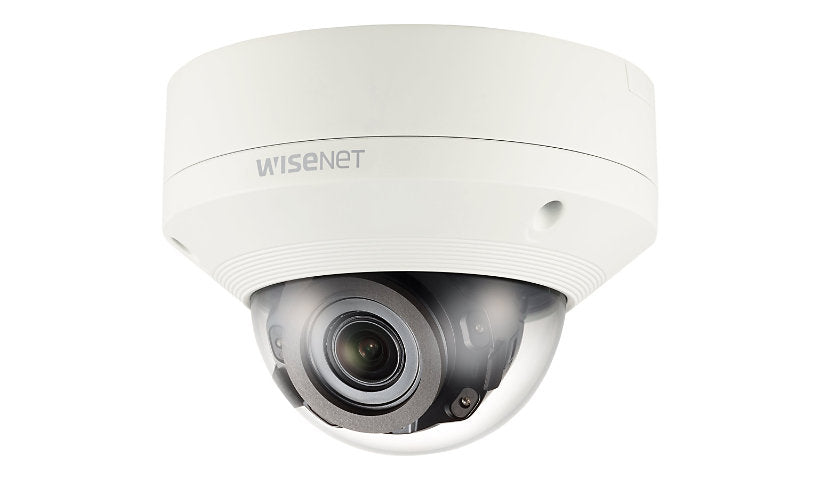

The Hanwha Vision Wisenet X XNV-8080R is an outdoor vandal proof dome recording up to 2560 x 1920 (5 MP) at 30 fps with a 3.9 to 9.4 mm F1.3 motorized lens (2.4x). It has IR up to 164 ft, face detection, defog, image stabilization, two way audio, composite out and alarm I/O, on 12 V DC, 24 V AC or PoE at 14 W. Ivory. Total pixels listed as 6 MP.
Key Features
- 5 MP, 2560 x 1920
- 3.9 to 9.4 mm F1.3
- IR up to 164 ft
- Two way audio, alarm I/O
- Face detection, DIS
- 12 V DC, 24 V AC or PoE
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-8080R
Packaged Quantity: 1
Color: Ivory
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / AC 24 V / PoE
Power Consumption Operational: 14 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 92.1
Angular Field of View (V, Max, Degree): 67.2
Focus Modes: Automatic, Manual, Motorized
Infrared Distance: 164 ft
Infrared LEDs: Yes
Video Signals: Composite video
Auto Iris Control: DC, P-Iris
Max Focal Length: 9.4 millimetre
Optical Zoom: 2.4
Sensor Pixels Effective (H): 2616
Sensor Pixels Effective (V): 1976
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 2560 x 1920 @ 30 fps
Sensor Pixels Total (H): 3096
Sensor Pixels Total (V): 2094
Digital Zoom: 24
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 354
Angular Field of View (H, Min, Degree): 38.7
Angular Field of View (V, Min, Degree): 29
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.07 lux - color - F1.3 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3
Min Focal Length: 3.9 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2560 x 1920
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / waterproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.7 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 2.23 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
