Product Information

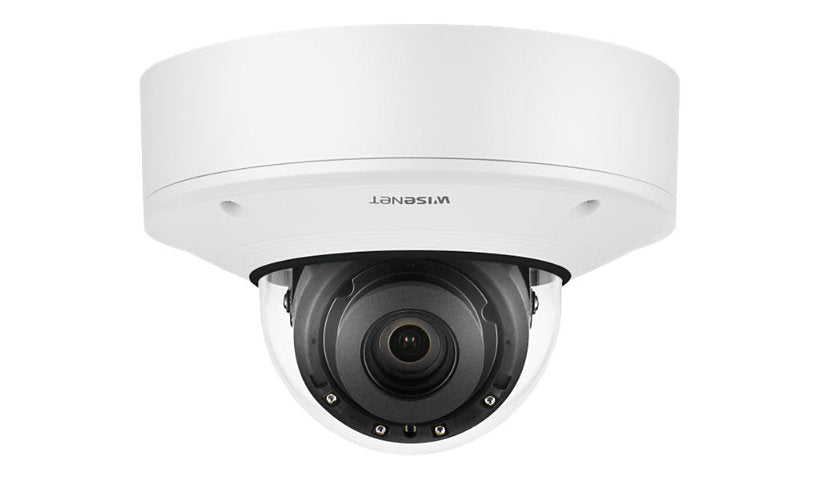

The Hanwha Vision Wisenet X XNV-8082R is a 6 MP outdoor vandal proof dome recording 3328 x 1872 at 30 fps with a 2.8 to 8.4 mm F1.2 motorized lens (3x). It has a gyroscope, image stabilization, defog, IR up to 131 ft, two way audio and composite out, works from -50 to 60 C and runs on 12 V DC, 24 V AC or PoE at 13.5 W. White.
Key Features
- 6 MP, 3328 x 1872
- 2.8 to 8.4 mm F1.2
- IR up to 131 ft
- Gyroscope, DIS
- Two way audio
- 12 V DC, 24 V AC or PoE
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-8082R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Appearing / disappearing detection, Audio Detection, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digital auto tracking, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Fog detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Video analytics, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / AC 24 V / PoE
Power Consumption Operational: 13.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 133
Angular Field of View (H, Max, Degree): 114
Angular Field of View (V, Max, Degree): 62
Infrared Distance: 131 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 46.3
Auto Iris Control: DC, P-Iris
Max Focal Length: 8.4 millimetre
Optical Zoom: 3
Video Capture: 3328 x 1872 @ 30 fps
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 40.2
Angular Field of View (V, Min, Degree): 22.5
Camera Iris: Auto iris
Min Focus Distance: 27.6 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.2 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.2-2.8
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711u, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.9 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 4.19 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
