Product Information

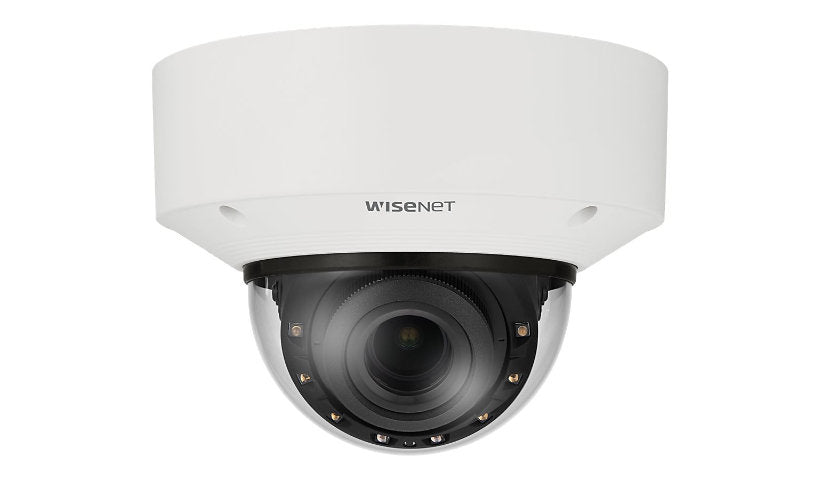

The Hanwha Vision Wisenet X XNV-C9083R is a 4K outdoor vandal proof dome with a 1/1.8 inch sensor and 4.4 to 9.3 mm motorized lens (2.1x) covering 47.5 to 112.1 degrees. It has IR up to 131 ft, two way audio, defog and digital image stabilization, and runs on 12 V DC or PoE Class 3 at 10.8 W. White.
Key Features
- 4K, 3840 x 2160
- 4.4 to 9.3 mm motorized
- IR up to 131 ft
- Two way audio
- Defog, DIS
- 12 V DC or PoE Class 3
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-C9083R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, Entrance / exit detection, Extreme Wide Dynamic Range (E-WDR), Hallway View, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Tamper-detection, Trigger recording, Unicast Streaming, User access log, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 10.8 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 137.5
Angular Field of View (H, Max, Degree): 112.1
Angular Field of View (V, Max, Degree): 58
Focus Modes: Manual
Infrared Distance: 131 ft
Infrared LEDs: Yes
Video Signals: USB
Angular Field of View (D, Min, Degree): 54.6
Auto Iris Control: P-Iris
Max Focal Length: 9.3 millimetre
Optical Zoom: 2.1
Tilt: -45 to +75
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 47.5
Angular Field of View (V, Min, Degree): 26.6
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.4 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.6 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.2 lbs
