Product Information

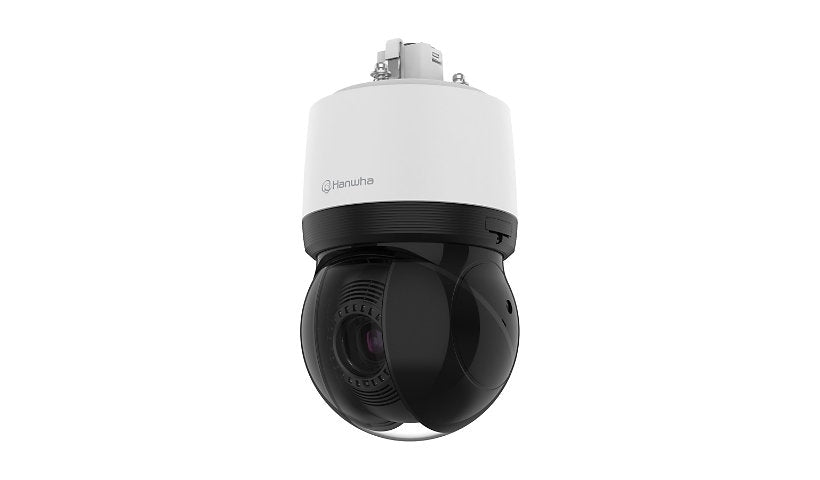

The Hanwha Vision XNP-C8253R is a 6 MP PTZ turret recording 3328 x 1872 at 30 fps with a 5 to 125 mm lens giving 25x optical zoom and pan speeds up to 700 degrees per second. It has IR up to 656 ft, a built in wiper, gyroscope, defog and auto tracking, and runs on PoE++ at 24 W.
Key Features
- 6 MP PTZ, 3328 x 1872
- 25x optical zoom
- IR up to 656 ft
- Built in wiper
- Auto tracking, gyroscope
- PoE++, 24 W
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XNP-C8253R
Packaged Quantity: 1
Color: Black, RAL 9003, RAL 9005, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 2
Features: Appearing / disappearing detection, Auto ICR, Auto tracking, Backlight Compensation (BLC), Brute force delay protection, Built-in gyroscope, Built-in wiper, Constant Bit Rate (CBR), Defog, Digest authentication, Digital Image Stabilization (DIS), Entrance / exit detection, Extreme WDR, Face Detection, Fog detection, Gain Control, Handover, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Shock detection, Signed firmware, Tamper-detection, Target lock tracking, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE ++
Power Consumption Operational: 24 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 57.42
Angular Field of View (V, Max, Degree): 33.54
Focus Modes: One-shot contrast
Infrared Distance: 656 ft
Infrared LEDs: Yes
Auto Iris Control: DC
Max Focal Length: 125 millimetre
Optical Zoom: 25
Digital Zoom: 32
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 500
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.71
Angular Field of View (V, Min, Degree): 1.55
Camera Iris: Auto iris
Min Focus Distance: 16.4 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.73
Min Focal Length: 5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Turret
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.5 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 7.05 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
