Product Information

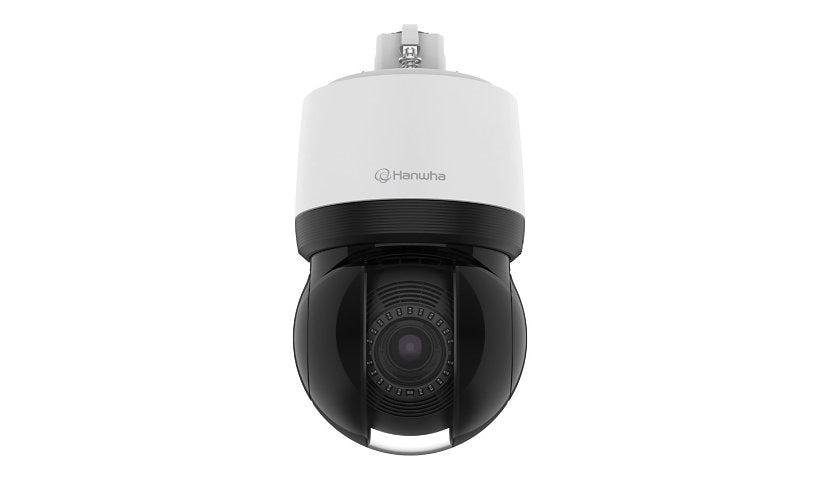

The Hanwha Vision XNP-C9253R is a 4K (8 MP) outdoor PTZ camera with 25x optical zoom (5 to 125 mm), 360 degree pan at up to 700 degrees per second and IR up to 656 ft. It has 300 presets, a built in gyroscope, defog and defocus detection, runs on High PoE Class 6 at 24 W and works from -50 to 60 C. The spec lists black and white, please confirm color.
Key Features
- 4K PTZ, 8 MP
- 25x optical zoom
- IR up to 656 ft
- Pan up to 700 degrees/s
- 300 presets, gyroscope
- High PoE, -50 to 60 C
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XNP-C9253R
Packaged Quantity: 1
Color: Black, RAL 9003, RAL 9005, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 300 preset positions, Appearing / disappearing detection, Auto ICR, Backlight Compensation (BLC), Brute force delay protection, Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Entrance / exit detection, Extreme WDR, Face Detection, Firmware encryption, Fog detection, Handover, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Shock detection, Spin dry, Tamper-detection, Target lock tracking, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseIR
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: High PoE Class 6
Power Consumption Operational: 24 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 57.42
Angular Field of View (V, Max, Degree): 33.54
Focus Modes: One-shot contrast
Infrared Distance: 656 ft
Auto Iris Control: DC
Max Focal Length: 125 millimetre
Optical Zoom: 25
Digital Zoom: 32
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 500
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.71
Angular Field of View (V, Min, Degree): 1.55
Camera Iris: Auto iris
Min Focus Distance: 16.4 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.73
Min Focal Length: 5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1464, 2592 x 1944, 320 x 240, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 90% RH (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.5 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 7.05 lbs
