Product Information

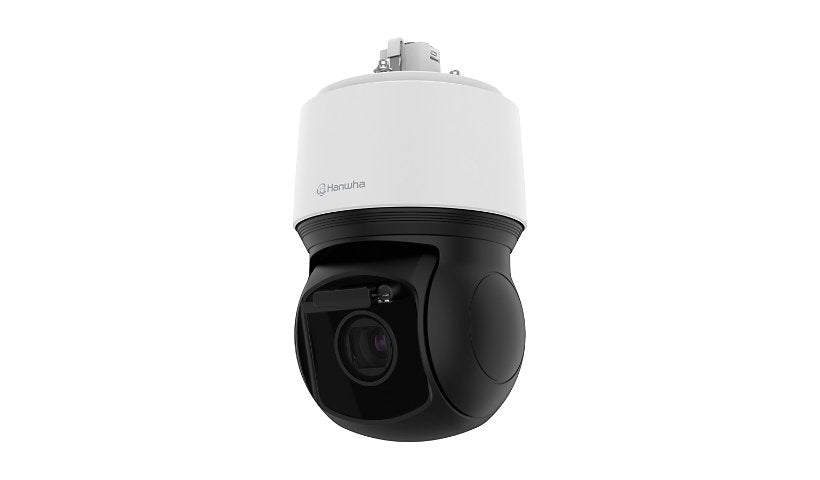

The Hanwha Vision XNP-C9303RW is a 4K (8 MP) PTZ camera with a 5 to 150 mm lens giving 30x optical zoom and pan speeds up to 500 degrees per second. It has AI analytics, IR up to 656 ft, 300 presets and 2 microSD slots, and runs on PoE++ at 26 W from -40 to 55 C.
Key Features
- 4K PTZ, 8 MP
- 30x optical zoom
- IR up to 656 ft
- AI analytics
- 300 presets, 2 microSD
- PoE++, 26 W
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XNP-C9303RW
Packaged Quantity: 1
Color: Black, RAL 9003, RAL 9005, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 2 microSD card slots, 300 preset positions, Adjustable gain control, AI Analytics, Aluminum housing, Anti-flicker, Audio Detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Built-in wiper, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Direction detection, Entrance / exit detection, Extreme WDR, Face Detection, Firmware encryption, Fog detection, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Object Detection, Object Tracking, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Polycarbonate housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Signed firmware, Smart Codec, Sound classification, Tamper-detection, Target lock tracking, Trusted Platform Module (TPM), Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE ++
Power Consumption Operational: 26 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 57.42
Angular Field of View (V, Max, Degree): 33.54
Focus Modes: Automatic, Manual
Infrared Distance: 656 ft
Auto Iris Control: DC
Max Focal Length: 150 millimetre
Optical Zoom: 30
Digital Zoom: 32
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 350
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.19
Angular Field of View (V, Min, Degree): 1.25
Camera Iris: Auto iris
Min Focus Distance: 10 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.56
Min Focal Length: 5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 320 x 240, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% RH
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 12.6 inch
Width: 7.3 inch
Depth: 7.3 inch
Weight: 12.35 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
