Product Information

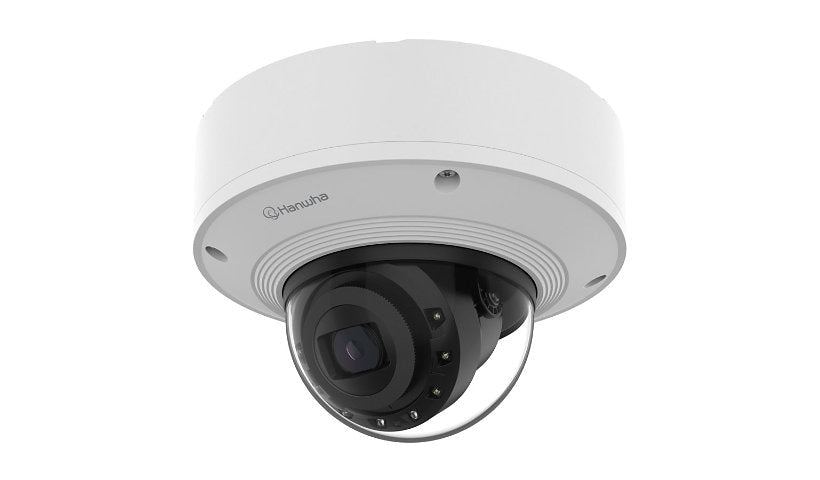

The Hanwha Vision XNV-6083R is a 2 MP AI outdoor vandal dome recording 1080p at up to 120 fps with a 2.8 to 12 mm motorized lens (4.3x). IR reaches 164 ft, it has a gyroscope with image stabilization, two way audio, BNC out and alarm I/O, a hard coated bubble and IK10 rating, and runs on 12 V DC or PoE+. White.
Key Features
- 2 MP, 1080p up to 120 fps
- 2.8 to 12 mm motorized
- IR up to 164 ft
- AI analytics, gyroscope
- Two way audio, alarm I/O
- 12 V DC or PoE+, IK10
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-6083R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Anti-flicker, Appearing / disappearing detection, Audio Detection, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Entrance / exit detection, Extreme WDR, Face Detection, Fog detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, Lens Distortion Compensation (LDC), License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Tamper-detection, Trusted Platform Module (TPM), Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Device Type: Power adapter / PoE
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 142.1
Angular Field of View (H, Max, Degree): 119.5
Angular Field of View (V, Max, Degree): 62.8
Focus Modes: Automatic, Manual
Infrared Distance: 164 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 32
Auto Iris Control: DC
Max Focal Length: 12 millimetre
Optical Zoom: 4.3
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 27.9
Angular Field of View (V, Min, Degree): 15.7
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.001 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec, 0.002 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec, 0.004 lux - B&W - F1.4 - 30 IRE - shutter 1/120 sec, 0.01 lux - color - F1.4 - 30 IRE - shutter 1/30 sec, 0.02 lux - color - F1.4 - 30 IRE - shutter 1/60 sec, 0.04 lux - color - F1.4 - 30 IRE - shutter 1/120 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.4-3.6
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.9 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 4.19 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
