Product Information

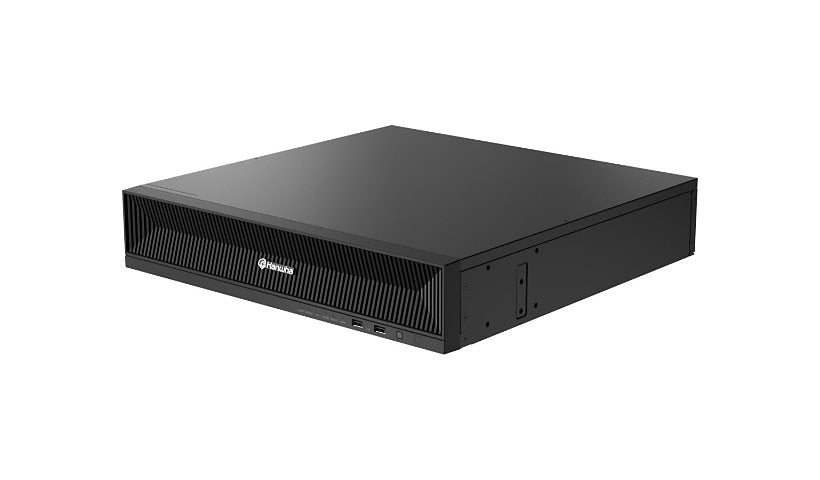

The Hanwha Vision XRN-3220B2 (XRN-3220B2-8TB) is a 32 channel NVR with 8 TB installed and 8 bays for up to 80 TB, recording up to 32 MP. It has two HDMI outputs up to 4K, three gigabit ports, iSCSI, 8 alarm inputs and 4 outputs, two way audio, smart search and fisheye dewarping. Keyboard and mouse included. 143 W, black.
Key Features
- 32 channels
- 8 TB installed
- 8 bays, up to 80 TB
- Dual HDMI, 4K
- 8 alarm in, 4 out
- Keyboard, mouse
Product Information
Quantity Supported: 8
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XRN-3220B2
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, DDNS, DHCP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, RTCP, RTP, RTSP, SMTP, SNMP, SUNAPI, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Network Ports: 10/100/1000Base-T x 3
Features #2: 2-way audio communication, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Dual stream support, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Intel 12th generation processor, Metal housing, Mobile phone monitoring, PTZ position presets, Recording data rate up to 520 Mbps, Webviewer
Capacity: 8 TB
Operating System Edition: Linux
Features: 802.1x authentication, Built-in buzzer, GOP control, Hallway view, Hanwha DDNS, Hanwha Techwin Root CA encryption, IP address filtering, iSCSI service, ONVIF support, Signed firmware, Source-Specific Multicast (SSM), Trusted Platform Module (TPM)
Features: 2-way audio communication, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Dual stream support, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Intel 12th generation processor, Metal housing, Mobile phone monitoring, PTZ position presets, Recording data rate up to 520 Mbps, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 143 watt
Memory and Processor
Supported Max Total Capacity: 80 TB
Technical Information
Alarm Ports: Alarm input x 8, Alarm output x 4
Display Modes: 16 split screens, 2 split screens, 3 split screens, 32 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, Dynamic layout
Frame Rate (Playback): 15 fps, 30 fps
Playback Search: Bookmark, Date/time, Event, Smart search, Text
Record Events: Alarm, Analytics, Audio detection, Continuous, Defocus detection, Event, Motion detection, Pre-event, Scheduled, Sensor, Video loss
Video Recording Resolution: 32 Megapixels, CIF
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, JPEG, MJPEG
Video Channels: 32
Image Resolution: 1280x720, 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 3.4 inch
Width: 17.2 inch
Depth: 17.1 inch
Weight: 16.09 lbs
Included Items
Package Content: Keyboard, Mouse
Certifications and Listing
Compliant Standards: cULus, EAC, FCC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
