Product Information

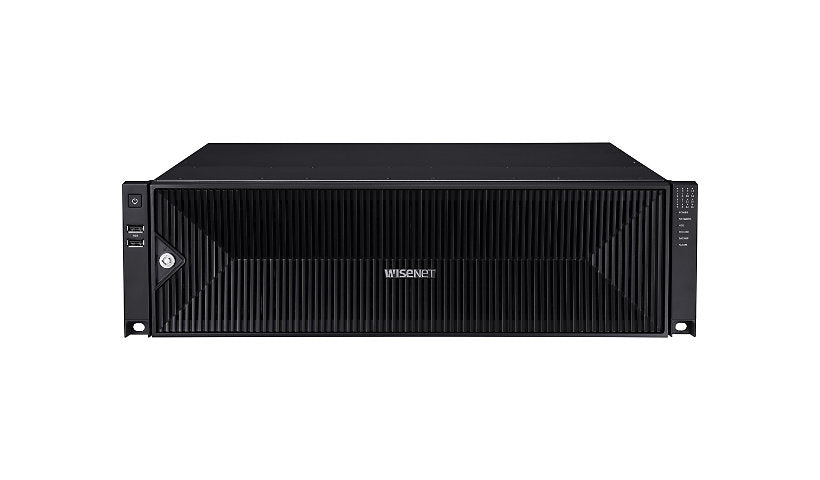

The Hanwha Vision XRN-3220B4 (XRN-3220B4-12TB) is a 32 channel NVR with 12 TB installed and 16 hot swap SATA bays for up to 160 TB, recording up to 32 MP with N+1 redundancy support. It has two HDMI outputs up to 4K, three gigabit ports, 8 alarm inputs and 4 outputs, two way audio and 300 PTZ presets. Keyboard and mouse included. 265 W, black.
Key Features
- 32 channels
- 12 TB installed
- 16 hot swap bays
- Up to 160 TB
- N+1 redundancy
- Dual HDMI, 4K
Product Information
Quantity Supported: 16
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XRN-3220B4
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, RTCP, RTP, RTSP, SMTP, SNMP, SUNAPI, TCP, TCP/IP, UDP, UDP/IP, UPnP
Network Ports: 10/100/1000Base-T x 3
Features #2: 2-way audio communication, 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Dual stream support, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Hot-swappable HDD trays, Intel 12th generation processor, Metal housing, Mirror image, RAID 5 support, RAID 6 support, Recording data rate up to 520 Mbps, Webviewer
Capacity: 12 TB
Operating System Edition: Linux
Features: 802.1x authentication, Auto bitrate con?guration, Automatic shutdown, Built-in buzzer, For N+1 redundancy, GOP control, Hallway view, Hanwha DDNS, Hanwha Techwin Root CA encryption, IP address filtering, LED status indicators, Multicast mode, ONVIF support, Signed firmware, Source-Specific Multicast (SSM), TLS decryption, Trusted Platform Module (TPM), Unicast mode, User access log
Features: 2-way audio communication, 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Dual stream support, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Hot-swappable HDD trays, Intel 12th generation processor, Metal housing, Mirror image, RAID 5 support, RAID 6 support, Recording data rate up to 520 Mbps, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 265 watt
Memory and Processor
Supported Max Total Capacity: 160 TB
Removable: Yes
Technical Information
Alarm Ports: Alarm input x 8, Alarm output x 4
Browser: Edge/Safari/Google Chrome
Display Modes: 16 split screens, 2 split screens, 3 split screens, 32 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, Dynamic layout
Frame Rate (Playback): 15 fps, 30 fps, 60 fps
Operating Systems: Android, Apple iOS, macOS 13.5.2, Windows 10
Playback Search: Bookmark, Date/time, Event, Smart search, Text
Record Events: Alarm, Analytics, Audio detection, Continuous, Defocus detection, Event, Motion detection, Normal, Post-event, Pre-event, Scheduled, Sensor, Video loss
Video Recording Resolution: 32 Megapixels, CIF
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, JPEG, MJPEG, PNG
Video Channels: 32
Image Resolution: 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 5.2 inch
Width: 17.3 inch
Depth: 22.5 inch
Weight: 30.86 lbs
Included Items
Package Content: Keyboard, Mouse
Certifications and Listing
Compliant Standards: cULus, EAC, FCC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
