Product Information

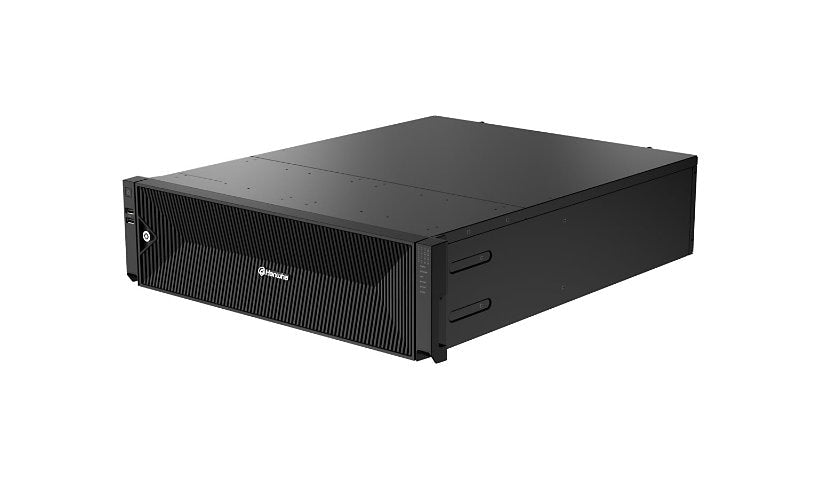

The Hanwha Vision XRN-6420DB4 is a 64 channel NVR with 64 audio channels, recording up to 32 MP, with 16 SATA bays for up to 160 TB and failover support. It has two HDMI outputs up to 4K, three gigabit ports, 8 alarm inputs and 4 outputs and USB 2.0 and 3.0. Keyboard and mouse included. 265 W, black. Drives not listed.
Key Features
- 64 channels
- 16 bays, up to 160 TB
- Failover support
- Dual HDMI, 4K
- 8 alarm in, 4 out
- Keyboard, mouse
Product Information
Quantity Supported: 16
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: XRN-6420DB4
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, RTCP, RTP, RTSP, SMTP, SNMP, SUNAPI, TCP, TCP/IP, UDP, UDP/IP, UPnP
Network Ports: 10/100/1000Base-T x 3
Features #2: 2-way audio communication, 300 PTZ position presets, Alarm push, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Mirror image, Push notification support, RAID 5 support, RAID 6 support, Recording data rate up to 520 Mbps, Webviewer
Operating System Edition: Linux
Features: Automatic shutdown, Built-in buzzer, CGI support, Data compression, Failover support, GOP control, Hallway view, Hanwha DDNS, Hanwha Techwin Root CA encryption, IP address filtering, Multicast mode, Signed firmware, Source-Specific Multicast (SSM), Trusted Platform Module (TPM), User access log
Features: 2-way audio communication, 300 PTZ position presets, Alarm push, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, E-mail alarm notifications, Event notification, Fisheye Dewarp function, Mirror image, Push notification support, RAID 5 support, RAID 6 support, Recording data rate up to 520 Mbps, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2
Audio Channels: 64
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 265 watt
Memory and Processor
Supported Max Total Capacity: 160 TB
Technical Information
Alarm Ports: Alarm input x 8, Alarm output x 4
Browser: Edge/Safari/Google Chrome
Display Modes: 2 split screens, 3 split screens, 32 split screens, 36 split screens, 4 split screens, 6 split screens, 64 split screens, 8 split screens, 9 split screens, Dynamic layout
Frame Rate (Playback): 15 fps, 30 fps
Operating Systems: Android, Apple iOS, macOS 13.5.2, Windows 10
Playback Search: Bookmark, Date/time, Event, Smart search, Text
Record Events: Alarm, Analytics, Audio detection, Continuous, Defocus detection, Event, Post-event, Pre-event, Scheduled, Sensor, Video loss
Video Recording Resolution: 32 Megapixels, CIF
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, G.711, G.726, H.264, H.265, MJPEG
Video Channels: 64
Image Resolution: 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 5.2 inch
Width: 17.3 inch
Depth: 22.5 inch
Weight: 33.29 lbs
Included Items
Package Content: Keyboard, Mouse
