Product Information

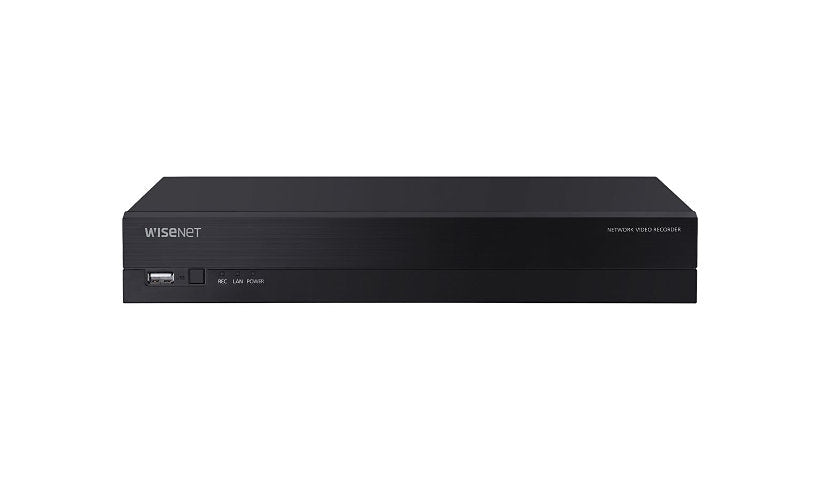

The Hanwha WiseNet ARN-410S is a compact 4 channel NVR with 4 built in PoE ports and a LAN uplink, supporting up to 4K, 4 audio channels and one SATA bay for up to 6 TB. It has HDMI output, two USB 2.0 ports, PTZ control and web viewing, on 54 V. Black. Drive not listed.
Key Features
- 4 channels
- 4 PoE ports
- 4K HDMI output
- 1 bay, up to 6 TB
- PTZ control
- Compact, black
Product Information
Quantity Supported: 1
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet
Model: ARN-410S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX
Supported Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP/IP, UPnP
Network Ports: 10/100Base-TX x 4 (PoE) / 10/100Base-TX x 1
Features #2: 300 PTZ position presets, Auto Recovery Backup (ARB), Pan/Tilt/Zoom support, Webviewer
Operating System Edition: Linux
Features: 802.1x authentication, GOP control, Hallway view, Hanwha DDNS, IP address filtering, ONVIF support
Features: 300 PTZ position presets, Auto Recovery Backup (ARB), Pan/Tilt/Zoom support, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2
Video Output Ports: HDMI x 1
Audio Channels: 4
Power
Input Voltage: 54 V
Power Consumption: 52 watt
Memory and Processor
Supported Max Total Capacity: 6 TB
Technical Information
Display Modes: 4 split screens, Sequence
Frame Rate (Playback): 120 fps, 30 fps
IP Cameras Supported: 4
Playback Search: Date/time, Event, Smart search, Text
Record Events: Audio detection, Defocus detection, Event, Motion detection, Sensor, Video loss
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, G.711, G.726, H.264, H.265, MJPEG
Video Channels: 4
Image Resolution: 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 1.9 inch
Width: 11.8 inch
Depth: 8.2 inch
Weight: 2.27 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
