Product Information

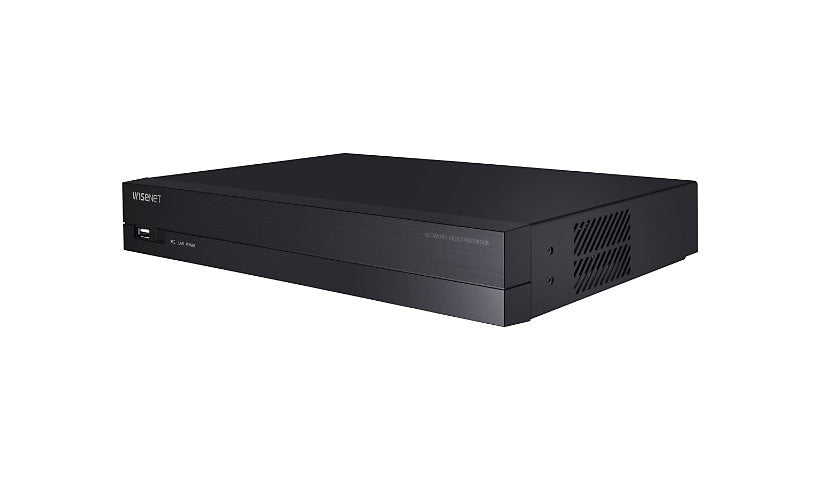

The Hanwha WiseNet A Series ARN-810S (ARN-810S-4TB) is an 8 channel NVR with 8 PoE ports and a gigabit uplink, 4 TB installed in a single bay (up to 6 TB), 8 audio channels and HDMI output. It supports PTZ control, SmartViewer and web viewing, and is 1U rack mountable as an option. 65 W, black.
Key Features
- 8 channels
- 8 PoE ports
- 4 TB installed
- Up to 6 TB
- HDMI output
- Rack mount option
Product Information
Quantity Supported: 1
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet A Series
Model: ARN-810S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX, Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, SNMP, SSM, TCP/IP, UDP/IP, UPnP
Network Ports: 10/100Base-TX x 8 (PoE) / 1000Base-T x 1
Features #2: 300 PTZ position presets, Pan/Tilt/Zoom support, SmartViewer, Webviewer
Capacity: 4 TB
Operating System Edition: Linux
Features: 802.1x authentication, Hallway view, IP address filtering, ONVIF support, Power over Ethernet (PoE)
Features: 300 PTZ position presets, Pan/Tilt/Zoom support, SmartViewer, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2
Video Output Ports: HDMI x 1
Audio Channels: 8
Power
Power Consumption: 65 watt
Memory and Processor
Supported Max Total Capacity: 6 TB
Technical Information
Display Modes: 4 split screens, 6 split screens, 8 split screens, 9 split screens, Sequence
Frame Rate (Playback): 120 fps, 30 fps
IP Cameras Supported: 8
Playback Search: Date/time, Event, Smart search, Text
Record Events: Alarm, Continuous, Event, Manual, Motion detection, Scheduled, Video loss
Networked: Yes
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, JPEG, MJPEG
Video Channels: 8
Image Resolution: 1920x1080
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85%
Physical Characteristics
Rack-mountable: Rack-mountable (option)
Height (Rack Units): 1
Dimensions and Weight
Height: 1.9 inch
Width: 11.8 inch
Depth: 8.2 inch
Weight: 2.31 lbs
Certifications and Listing
Compliant Standards: Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
