Product Information

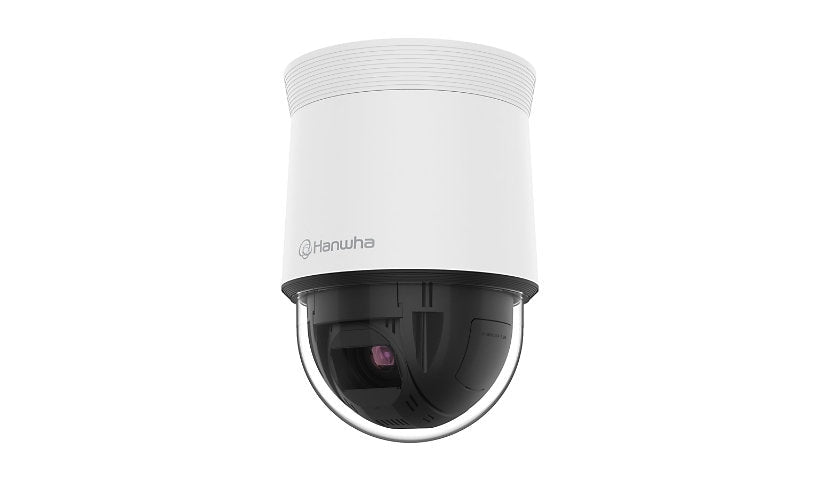

The Hanwha Wisenet Q QNP-6320 is a 2 MP PTZ dome with a 4.44 to 142.6 mm lens for 32x optical zoom, streaming 1080p at up to 60 fps with pan speeds up to 700 degrees per second. It has a built in gyroscope with DIS, defog, two way audio, 4 alarm inputs and 2 outputs, and runs on PoE+ Class 4 at 12 W. White, NDAA listed.
Key Features
- 2 MP, 1080p60
- 32x optical zoom
- Gyro and DIS
- Two way audio
- 4 alarm in, 2 out
- PoE+, NDAA
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNP-6320
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Alarm function, Anti-flicker, Audio Detection, Auto ICR, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, Entrance / exit detection, Gain Control, Handover, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Motion Detection Technology, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus Class 4
Power Consumption Operational: 12 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1024 megabyte
Flash Memory Installed: 256 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 64.66
Angular Field of View (V, Max, Degree): 38.08
Focus Modes: Automatic
Auto Iris Control: DC
Max Focal Length: 142.6 millimetre
Optical Zoom: 32
Alarm Input Quantity: 4
Alarm Output Quantity: 2
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 300
Tilt: -15 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.29
Angular Field of View (V, Min, Degree): 1.3
Camera Iris: Auto iris
Min Focus Distance: 5 ft
Minimum Illumination: 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.4
Min Focal Length: 4.44 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 8.6 inch
Width: 6 inch
Depth: 6 inch
Weight: 3.75 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
