Product Information

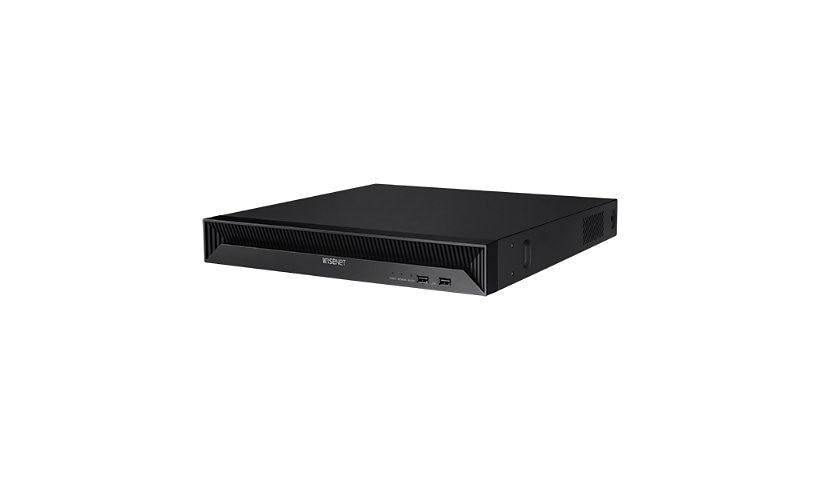

The Hanwha Wisenet Q QRN-1630S (QRN-1630S-8TB) is a 1U 16 channel NVR with 16 PoE+ ports and a gigabit uplink, 8 TB installed and support up to 20 TB, 4K HDMI output, 16 audio channels and 4 alarm inputs and 2 outputs. Black.
Key Features
- 16 channels
- 16 PoE+ ports
- 8 TB installed
- Up to 20 TB
- 4K HDMI output
- 1U rack mount
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QRN-1630S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, SNMP, SSM, TCP/IP, UDP/IP, UPnP
Network Ports: PoE+ x 16 / 10/100/1000Base-T x 1
Features #2: Fisheye Dewarp function, PTZ position presets, SmartViewer, Webviewer
Capacity: 8 TB
Features: 802.1x authentication, Hallway view, IP address filtering, ONVIF support
Features: Fisheye Dewarp function, PTZ position presets, SmartViewer, Webviewer
Connectivity
Additional Ports: USB x 2
Audio Outputs: RCA x 1
Video Output Ports: HDMI x 1
Audio Channels: 16
Memory and Processor
Supported Max Total Capacity: 20 TB
Technical Information
Alarm Ports: Alarm input x 4, Alarm output x 2
Frame Rate (Playback): 120 fps, 240 fps, 480 fps, 60 fps, 90 fps
IP Cameras Supported: 16
Playback Search: Date/time, Event
Record Events: Alarm, Continuous, Event, Motion detection, Scheduled, Video loss
Networked: Yes
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, MJPEG
Video Channels: 16
Image Resolution: 1280x720, 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 2 inch
Width: 14.6 inch
Depth: 12.6 inch
Weight: 6.33 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
