Product Information

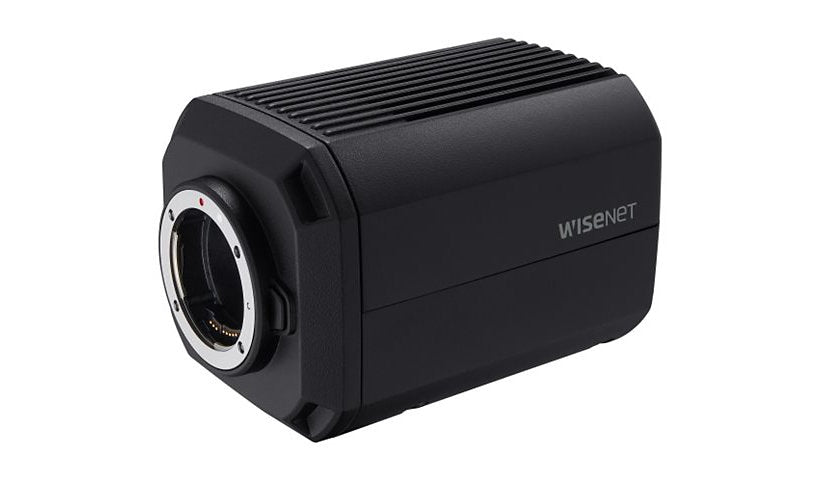

The Hanwha Wisenet T TNB-9000 is an 8K box camera (7680 x 4320) supplied without a lens, with a Canon EF lens mount. It has an HDMI output, two way audio, RS-485, 1 alarm in and 1 out, and an aluminum housing, and runs on 12 V DC or High PoE at 30 W. Black.
Key Features
- 8K, 7680 x 4320
- No lens, EF mount
- HDMI output
- Two way audio
- RS-485, 1/1 alarm
- 12 V or High PoE
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet T
Model: TNB-9000
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Appearing / disappearing detection, Audio Detection, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital Wide Dynamic Range (D-WDR), Directional Detection, Entrance / exit detection, Face Detection, Gain Control, Handover, IP address filtering, Loitering detection, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Noise Reduction (SSNRV), Sound classification, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, HDMI, LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / High PoE
Power Consumption Operational: 30 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4096 megabyte
Flash Memory Installed: 512 megabyte
Technical Information
Video Signals: HDMI
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Control Interface: RS-485
Motion Detection: Yes
Lens Mount: EF-mount
Minimum Illumination: 0.0015 lux - B&W - F1.4 - shutter 1/30 sec, 0.015 lux - color - F1.4 - shutter 1/30 sec
Image Sensor Type: CMOS
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 3840 x 2160, 4608 x 2592, 4768 x 3184, 5472 x 3648, 6016 x 3384, 6016 x 4008, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 7360 x 4128, 7680 x 4320, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.711u, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 7680 x 4320
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Box
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.6 inch
Width: 4.7 inch
Depth: 7 inch
Weight: 4.63 lbs
