Product Information

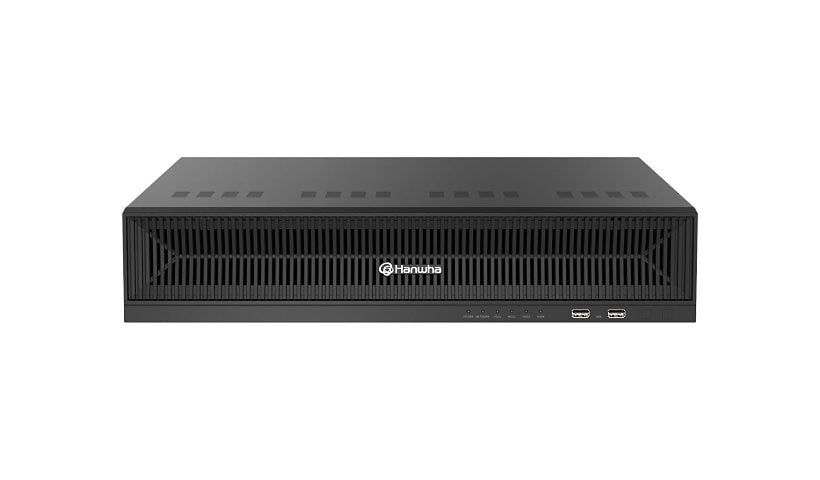

The Hanwha WiseNet WAVE WRN-1632S (WRN-1632S-8TB) is a 1U NVR with 16 PoE/PoE+ ports and two gigabit uplinks, 8 TB installed and 4 bays for up to 40 TB, recording up to 250 Mbps. It runs Ubuntu 22.04 LTS from eMMC with 8 GB RAM, includes 4 Wisenet WAVE Professional licenses, and has HDMI and DisplayPort outputs. Mouse and rack brackets included. Black.
Key Features
- 16 PoE+ ports
- 8 TB installed
- Up to 40 TB
- 4 WAVE Pro licenses
- HDMI, DisplayPort
- 1U rack mount
Product Information
Quantity Supported: 4
Software Included (Y): 4x Wisenet WAVE Professional license
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRN-1632S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-T, Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100Base-TX x 16 (PoE/PoE+) / 1000Base-T x 2
Features #2: eMMC SSD OS system drive, Metal housing, Recording data rate up to 250 Mbps, Video Metadata technology
Capacity: 8 TB
Operating System Edition: Ubuntu 22.04 LTS
Features: Cloud sync
Features: eMMC SSD OS system drive, Metal housing, Recording data rate up to 250 Mbps, Video Metadata technology
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Video Output Ports: DisplayPort x 1, HDMI x 1
Power Over Ethernet (PoE): PoE+
Power
Input Voltage: 100 - 240 V
Power Consumption: 340 watt
Memory and Processor
Supported Max Total Capacity: 40 TB
RAM: 8 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 17.3 inch
Width: 3.5 inch
Depth: 16.8 inch
Weight: 12.26 lbs
Included Items
Package Content: Mouse, NVR, Rack mount brackets
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
