Product Information

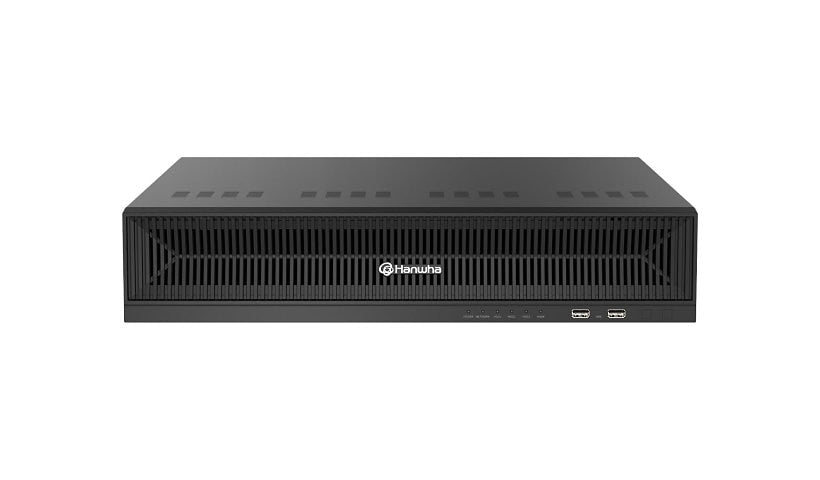

Hanwha's WiseNet WAVE WRN-1632S (WRN-1632S-4TB) is a rack mount NVR for 32 channels with 4 TB storage on 4 bays (up to 40 TB), 16 PoE/PoE+ ports plus 2 gigabit, DisplayPort and HDMI output, 8 GB RAM, Ubuntu 22.04 LTS on eMMC, cloud sync and up to 250 Mbps recording. Mouse and rack brackets included.
Key Features
- 32 channels, 4 TB
- 16 PoE/PoE+ ports
- 4 bays, up to 40 TB
- DP and HDMI
- Cloud sync
- Ubuntu 22.04 LTS
Product Information
Quantity Supported: 4
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRN-1632S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100Base-TX x 16 (PoE/PoE+) / 1000Base-T x 2
Features #2: eMMC SSD OS system drive, Metal housing, Recording data rate up to 250 Mbps, Video Metadata technology
Capacity: 4 TB
Operating System Edition: Ubuntu 22.04 LTS
Features: Cloud sync
Features: eMMC SSD OS system drive, Metal housing, Recording data rate up to 250 Mbps, Video Metadata technology
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: DisplayPort x 1, HDMI x 1
Power Over Ethernet (PoE): PoE+
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 340 watt
Memory and Processor
Flash Memory: 32 GB
Supported Max Total Capacity: 40 TB
RAM: 8 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Compression Format: H.264, H.265
Video Channels: 32
Image Resolution: 1920x1080, 3840x2160, 640x360
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.26 lbs
Included Items
Package Content: Mouse, NVR, Rack mount brackets
