Product Information

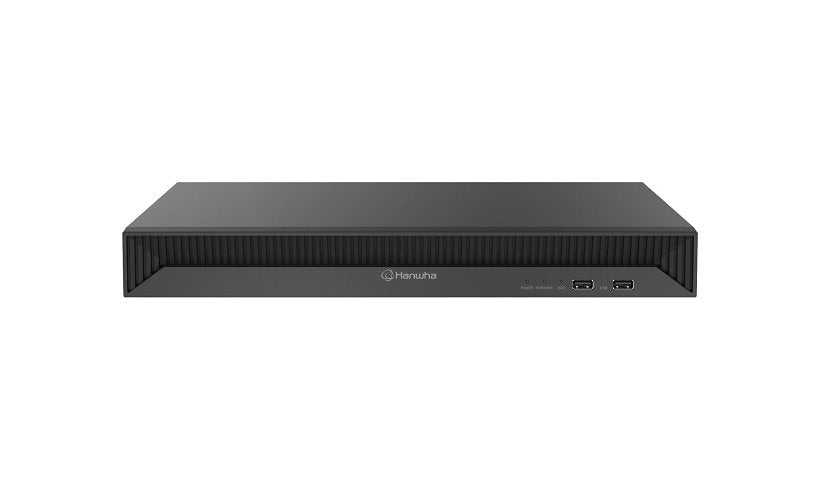

Hanwha's WiseNet WAVE WRN-816S (WRN-816S-16TB) is a 1U rack NVR for 8 channels with 16 TB storage on 2 removable bays (up to 20 TB), 8 PoE+ ports plus a gigabit uplink, DisplayPort and HDMI output, Ubuntu 22.04 LTS on eMMC and up to 150 Mbps recording. Mouse and rack brackets included.
Key Features
- 8 channels, 16 TB
- 8 PoE+ ports
- 2 bays, up to 20 TB
- DP and HDMI
- Ubuntu 22.04 LTS
- 1U rack
Product Information
Quantity Supported: 2
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRN-816S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100Base-TX x 8 (PoE+) / 1000Base-T x 1
Capacity: 16 TB
Operating System Edition: Ubuntu 22.04 LTS
Features: eMMC SSD OS system drive, Recording data rate up to 150 Mbps
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: DisplayPort x 1, HDMI x 1
Power Over Ethernet (PoE): PoE
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 170 watt
Memory and Processor
Supported Max Total Capacity: 20 TB
Removable: Yes
Technical Information
Networked: Yes
Interface: Serial ATA
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 2 inch
Width: 14.6 inch
Depth: 12.6 inch
Weight: 6.13 lbs
Included Items
Package Content: Mouse, Rack mount brackets
Certifications and Listing
Compliant Standards: cULus, EAC, FCC, NDAA, Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
