Product Information

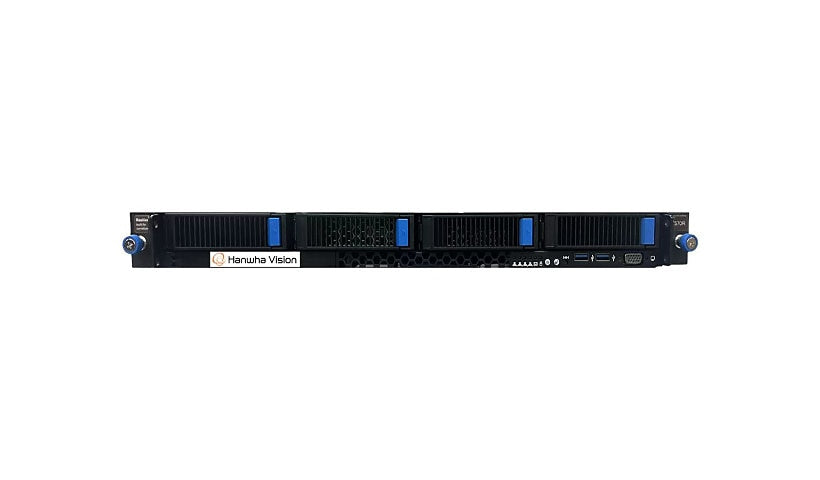

The Hanwha WiseNet WAVE WRR-P-E201S2 (16 TB) is a 1U rack NVR with an Intel Xeon 6333P, 16 GB RAM, 16 TB installed in 4 removable bays (up to 80 TB), Windows Server 2022 Standard and 4 Wisenet WAVE Professional licenses. It has IPMI, HDMI, three Mini DisplayPort and VGA outputs, and comes with rails, cable arm, keyboard and mouse. Black.
Key Features
- 16 TB installed
- Up to 80 TB
- Xeon 6333P, 16 GB
- 4 WAVE Pro licenses
- IPMI remote mgmt
- 1U rack mount
Product Information
Quantity Supported: 4
Software Included (Y): 4 Wisenet WAVE Professional licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRR-P-E201S2
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Features #2: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Capacity: 16 TB
Operating System Edition: Microsoft Windows Server 2022 Standard
Features: Remote management (IPMI)
Features: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Connectivity
Additional Ports: Serial, USB 3.2 x 4
Video Output Ports: HDMI x 1, Mini DisplayPort x 3, VGA x 1
Power
Input Voltage: 100 - 240 V
Memory and Processor
Supported Max Total Capacity: 80 TB
Removable: Yes
CPU: Intel Xeon 6333P
RAM: 16 GB
Technical Information
Networked: Yes
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 80% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 17.3 inch
Width: 19.6 inch
Depth: 1.7 inch
Weight: 50.71 lbs
Included Items
Package Content: Cable management arm, Keyboard, Mini DisplayPort to HDMI adapter, Mouse, Slide rails
