Product Information

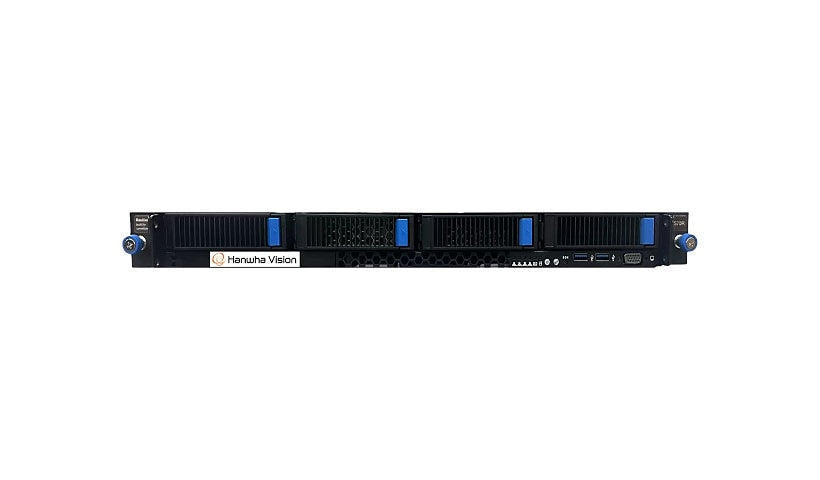

The Hanwha WiseNet WAVE WRR-P-E201S2 (80 TB) is a 1U rack NVR with an Intel Xeon 6333P, 16 GB RAM, 80 TB of HDD storage in 4 bays and two 480 GB M.2 SSDs in RAID 1 for the OS. It runs Windows Server 2022 Standard with 4 Wisenet WAVE Professional licenses and has HDMI, three Mini DisplayPort and two VGA outputs. Keyboard, mouse and slide rails included. Black.
Key Features
- 80 TB installed
- Xeon 6333P, 16 GB
- 2 x 480 GB SSD OS
- 4 WAVE Pro licenses
- HDMI, Mini DP, VGA
- 1U rack mount
Product Information
Quantity Supported: 4
Software Included (Y): 4 Wisenet WAVE Professional licenses, Wisenet WAVE
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRR-P-E201S2
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Features #2: 470 Mbps Network Bandwidth, Metal housing, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support
Operating System Edition: Microsoft Windows Server 2022 Standard
Features: 2 x 480GB M.2 SSD OS drive (RAID 1)
Features: 470 Mbps Network Bandwidth, Metal housing, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support
Connectivity
Additional Ports: USB 3.2 x 4
Video Output Ports: HDMI x 1, Mini DisplayPort x 3, VGA x 2
Power
Input Voltage: 100 - 240 V
Memory and Processor
HDD: 80 TB
CPU: Intel Xeon 6333P
RAM: 16 GB
Technical Information
Networked: Yes
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 80% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 19.6 inch
Weight: 50.71 lbs
Included Items
Package Content: Keyboard, Mini DisplayPort to HDMI adapter, Mouse, Slide rails
