Product Information

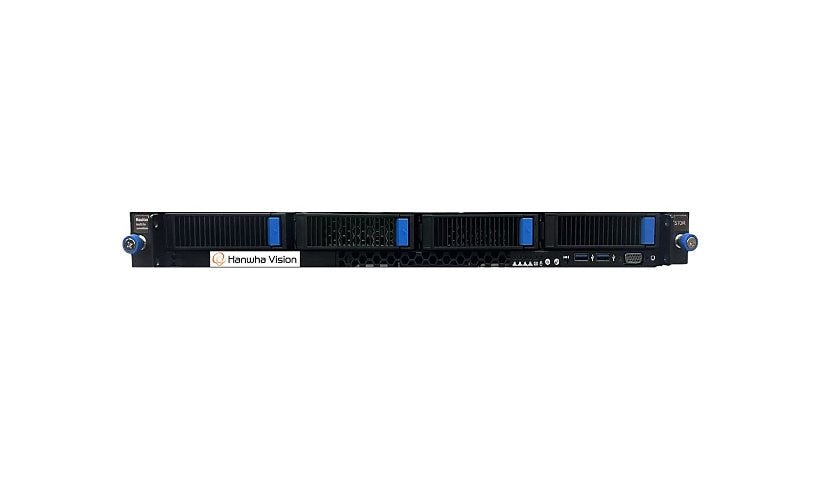

Hanwha's WiseNet WAVE WRR-P-E201W2 (WRR-P-E201W2-48TB) is a 1U rack NVR with 48 TB on 4 hot swap bays (up to 80 TB), Intel Xeon 6333P, 16 GB RAM, NVIDIA Quadro T400, 2 x 480 GB SSD OS drives, Windows 11 IoT Enterprise 2024 LTSC and 4 Wisenet WAVE Professional licenses, RAID 0, 1, 5 and 6, up to 470 Mbps, 2 gigabit ports, HDMI, 3 Mini DP and VGA, IPMI. Bundled with Keep Your Hard Drive plus 5 years of next business day on site service. Rails, cable arm, keyboard and mouse included.
Key Features
- 48 TB, up to 80 TB
- Xeon 6333P, 16 GB
- Quadro T400 GPU
- 4 WAVE Pro licenses
- 1U, rails included
- 5 yr NBD on site service
Product Information
Quantity Supported: 4
Software Included (Y): 4 Wisenet WAVE Professional licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRR-P-E201W2
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Features #2: 2 x 480GB SSD OS system drive, Hot-swappable HDD trays, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Capacity: 48 TB
Operating System Edition: Windows 11 IoT Enterprise 2024 LTSC
Features: Remote management (IPMI)
Features: 2 x 480GB SSD OS system drive, Hot-swappable HDD trays, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Bundled Services: 5 years On-Site Next Business Day, Keep Your Hard Drive
Connectivity
Additional Ports: Serial, USB 3.2 x 4
Video Output Ports: HDMI x 1, Mini DisplayPort x 3, VGA x 1
Memory and Processor
Supported Max Total Capacity: 80 TB
Removable: Yes
CPU: Intel Xeon 6333P
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 80% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 17.3 inch
Width: 19.6 inch
Depth: 1.7 inch
Weight: 50.71 lbs
Included Items
Package Content: Cable management arm, Keyboard, Mouse, NVR, Slide rails
