Product Information

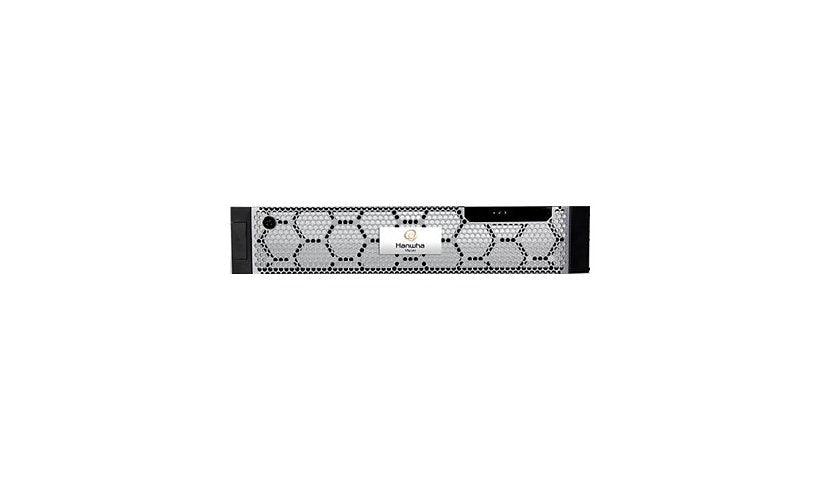

Hanwha's WiseNet WAVE WRR-P-S204L (WRR-P-S204L-128TB) is a rack NVR with 128 TB storage and 12 removable SATA/SAS bays (up to 240 TB), Intel Xeon 4410Y, 16 GB RAM, Ubuntu 22.04 LTS, 4 Wisenet WAVE Professional licenses, mirrored 480 GB SSD OS drives, RAID 0, 1, 5, 6 and 10, up to 470 Mbps, 4 gigabit ports, 3 Mini DP and 2 VGA, IPMI. Bundled with Keep Your Hard Drive plus 5 years of next business day on site service. Rails, keyboard and mouse included.
Key Features
- 128 TB, 12 bays
- Xeon 4410Y, 16 GB
- Ubuntu 22.04 LTS
- 4 WAVE Pro licenses
- 4 x gigabit ports
- 5 yr NBD on site service
Product Information
Quantity Installed: 1
Quantity Supported: 12
Software Included (Y): 4 Wisenet WAVE Professional licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRR-P-S204L
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 4
Features #2: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Capacity: 128 TB
Operating System Edition: Ubuntu 22.04 LTS
Features: IPMI over LAN
Features: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Bundled Services: 5 years On-Site Next Business Day, Keep Your Hard Drive
Connectivity
Additional Ports: Serial, USB 2.0 x 2, USB 3.0 x 1
Video Output Ports: Mini DisplayPort x 3, VGA x 2
Memory and Processor
Supported Max Total Capacity: 240 TB
Removable: Yes
CPU: Intel Xeon 4410Y
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA / SAS
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 5 - 95% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Dimensions and Weight
Height: 3.4 inch
Width: 19 inch
Depth: 30.4 inch
Weight: 55.34 lbs
Included Items
Package Content: Keyboard, Mouse, NVR, Slide rails
