Product Information

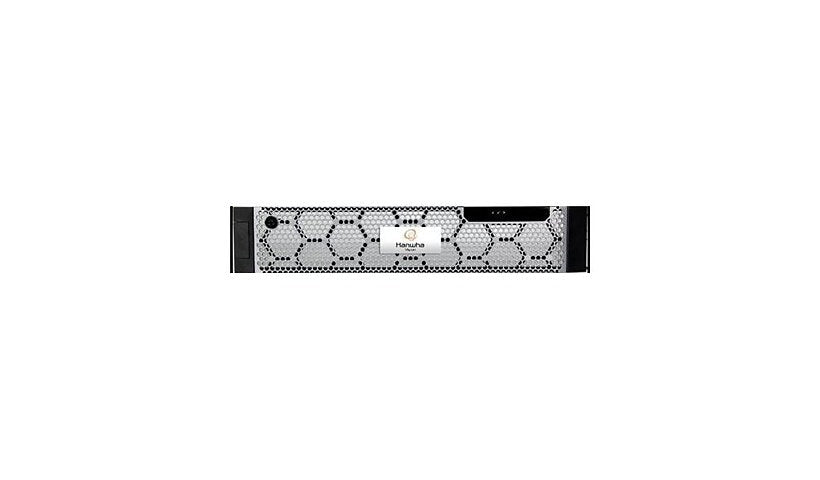

The Hanwha WiseNet WAVE WRR-P-S204S (48 TB) is a 2U rack NVR on an Intel Xeon 4410Y with 16 GB RAM, 48 TB installed and support up to 240 TB in 12 bays, running Windows Server 2022 with 4 Wisenet WAVE Professional licenses. It has IPMI, four gigabit ports, Mini DisplayPort and VGA, and comes with rails, a cable arm, keyboard and mouse, bundled with Keep Your Hard Drive plus 5 years of next business day on site service.
Key Features
- 48 TB installed
- Up to 240 TB
- Xeon 4410Y, 16 GB
- 4 WAVE Pro licenses
- Windows Server 2022
- 5 yr on site NBD service
Product Information
Quantity Supported: 12
Software Included (Y): 4 Wisenet WAVE Professional licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRR-P-S204S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ONVIF
Network Ports: 10/100/1000Base-T x 4
Features #2: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Hot-swappable HDD trays, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Capacity: 48 TB
Operating System Edition: Microsoft Windows Server 2022
Features: IPMI over LAN, ONVIF support
Features: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Hot-swappable HDD trays, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Bundled Services: 5 years On-Site Next Business Day, Keep Your Hard Drive
Connectivity
Additional Ports: Serial, USB 2.0 x 2, USB 3.0 x 1
Video Output Ports: Mini DisplayPort x 3, VGA x 2
Memory and Processor
Supported Max Total Capacity: 240 TB
Removable: Yes
CPU: Intel Xeon 4410Y
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA / SAS
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 5 - 95% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.4 inch
Width: 19 inch
Depth: 30.4 inch
Weight: 55.34 lbs
Included Items
Package Content: Cable management arm, Keyboard, Mini DisplayPort to HDMI adapter, Mouse, NVR, Slide rails
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
