Product Information

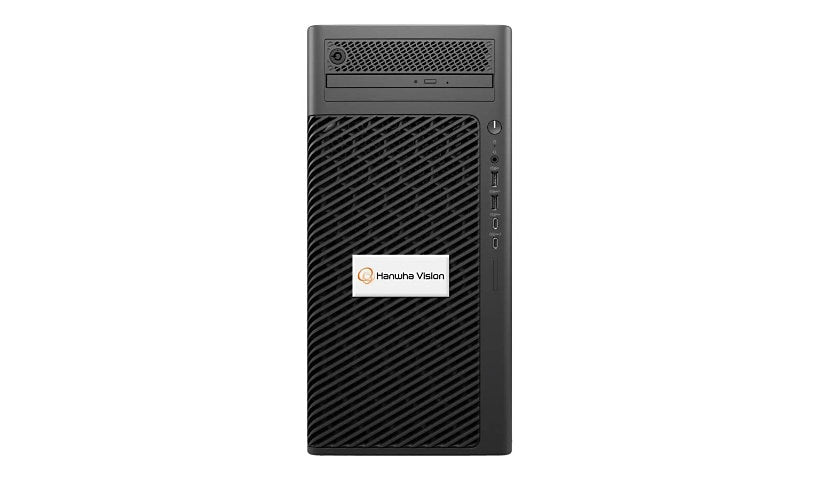

Hanwha's WiseNet WAVE WRT-P-5205W (WRT-P-5205W-4TB) is a standalone NVR with 4 TB storage on 3 bays (up to 36 TB), Intel Core Ultra 5, 16 GB RAM, a 512 GB SSD OS drive, Windows 11 IoT Enterprise 2024 LTSC and 4 Wisenet WAVE Professional licenses, up to 470 Mbps recording, gigabit and 5GbE ports, 2 DisplayPort outputs and Thunderbolt. Bundled with Keep Your Hard Drive plus 5 years of next business day on site service. Keyboard and mouse included.
Key Features
- 4 TB, up to 36 TB
- Core Ultra 5, 16 GB
- 4 WAVE Pro licenses
- 1GbE and 5GbE
- 2 x DisplayPort
- 5 yr NBD on site service
Product Information
Quantity Supported: 3
Software Included (Y): 4 Wisenet WAVE Professional licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet WAVE
Model: WRT-P-5205W
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T, Ethernet 5GBase-T
Network Ports: 10/100/1000Base-T x 1 / 5Gb x 1
Features #2: 512GB SSD OS system drive, 80 Plus Gold power device, Metal housing, Recording data rate up to 470 Mbps
Capacity: 4 TB
Operating System Edition: Windows 11 IoT Enterprise 2024 LTSC
Features: ONVIF support
Features: 512GB SSD OS system drive, 80 Plus Gold power device, Metal housing, Recording data rate up to 470 Mbps
Bundled Services: 5 years On-Site Next Business Day, Keep Your Hard Drive
Connectivity
Additional Ports: Thunderbolt Type C x 1, USB 2.0 x 2, USB 3.2 Gen 2x2 Type C x 2, USB 3.2 Gen1 Type A x 2, USB 3.2 Gen2 Type A x 2, USB 3.2 Gen2 Type C x 1
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: DisplayPort x 2
Memory and Processor
Supported Max Total Capacity: 36 TB
CPU: Intel Core Ultra 5
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 20 - 85% (non-condensing)
Dimensions and Weight
Height: 15.2 inch
Width: 7.4 inch
Depth: 17.2 inch
Weight: 44.97 lbs
Included Items
Package Content: Keyboard, Mouse, NVR
