Product Information

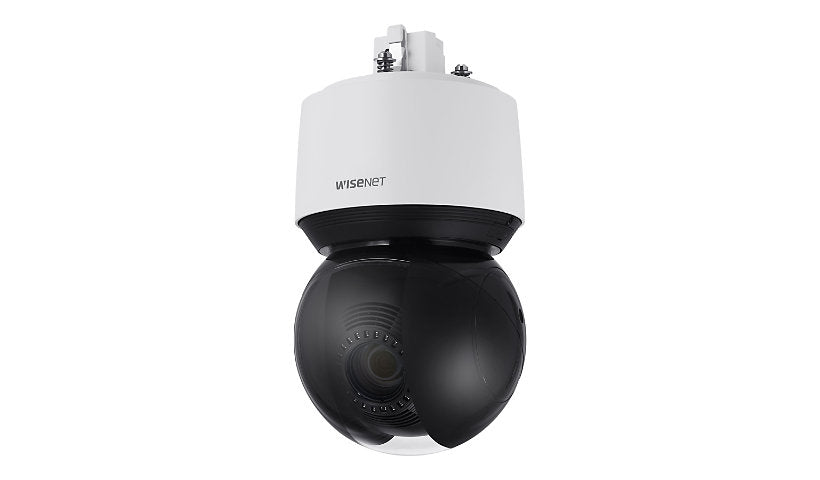

The Hanwha Wisenet X Plus XNP-6400R is a 2 MP PTZ with a 4.25 to 170 mm lens for 40x optical zoom, streaming 1080p at up to 60 fps with pan and tilt speeds up to 250 degrees per second. It has 300 presets, defog, DIS and tampering detection in an aluminum housing, runs on High PoE Class 6, and comes with a PoE injector.
Key Features
- 2 MP, 1080p60
- 40x, 4.25 to 170 mm
- 300 presets
- Defog and DIS
- High PoE Class 6
- PoE injector included
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X Plus
Model: XNP-6400R
Packaged Quantity: 1
Color: Black, RAL 9003, RAL 9005, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 300 preset positions, Aluminum housing, Appearing / disappearing detection, Auto white balance, Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defog, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Extreme WDR, Face Detection, Fog detection, Gain Control, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Loitering detection, Motion Detection, Multicast Streaming, Object Tracking, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polycarbonate housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Smart Codec, Target lock tracking, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 65.66
Angular Field of View (V, Max, Degree): 39.4
Focus Modes: Automatic, Manual
Auto Iris Control: DC
Max Focal Length: 170 millimetre
Optical Zoom: 40
Digital Zoom: 32
Max Panning Speed (degree/sec): 250
Max Tilting Speed (degree/sec): 250
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 1.88
Angular Field of View (V, Min, Degree): 1.09
Camera Iris: Auto iris
Min Focus Distance: 10 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.95
Min Focal Length: 4.25 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.5 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 7.05 lbs
Included Items
Included Accessories: PoE injector
