Product Information

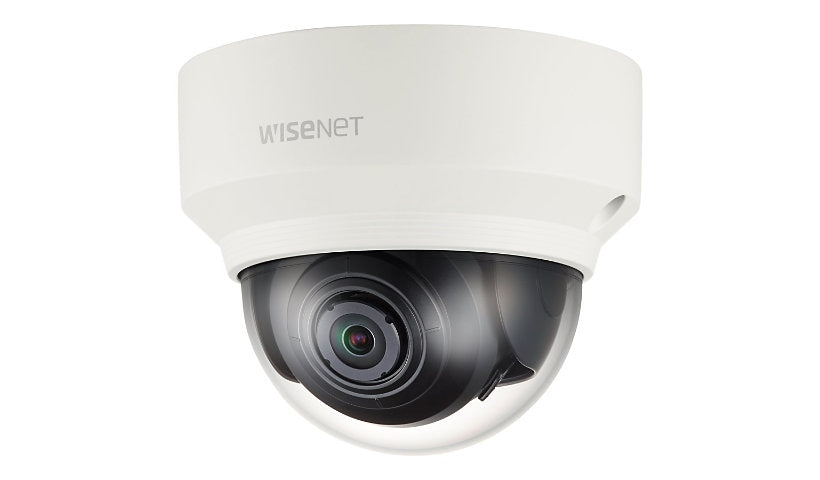

The Hanwha Wisenet X XND-6010 is a 2 MP vandal proof dome streaming 1080p at up to 60 fps through a fixed 2.4 mm lens with a 139 degree view. It has two way audio, 1 alarm in and 1 out, a composite output, defog and DIS, and runs on 12 V DC or PoE at 6 W. Ivory finish.
Key Features
- 2 MP, 1080p60
- 2.4 mm, 139 degrees
- Two way audio
- 1 alarm in, 1 out
- Vandal proof
- 12 V or PoE, ivory
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XND-6010
Packaged Quantity: 1
Color: Ivory
Color Category: Beige
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE
Power Consumption Operational: 6 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Focus Modes: Manual
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 167
Sensor Pixels Effective (H): 1945
Sensor Pixels Effective (V): 1097
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 60 fps
Sensor Pixels Total (H): 1945
Sensor Pixels Total (V): 1109
Digital Zoom: 24
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 354
Angular Field of View (H, Min, Degree): 139
Angular Field of View (V, Min, Degree): 73
Min Focus Distance: 15.7 inch
Minimum Illumination: 0.0055 lux - B&W - F2.0 - shutter 1/30 sec, 0.055 lux - color - F2.0 - shutter 1/30 sec
Total Pixels: 2,160,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.5 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 12.87 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
