Product Information

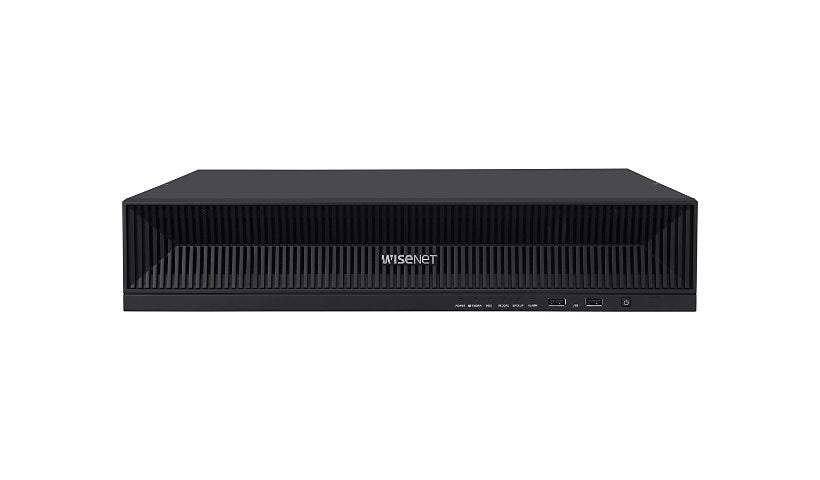

Hanwha's WiseNet X XRN-1620SB1 (XRN-1620SB1-24TB) is a 16 channel standalone NVR with 24 TB storage on 4 bays, 16 PoE/PoE+ camera ports plus 2 gigabit ports, HDMI and VGA output up to 3840 x 2160, 4 alarm inputs and 2 outputs, 300 PTZ presets and fisheye dewarp, on Linux, 310 W.
Key Features
- 16 channels, 24 TB
- 16 PoE/PoE+ ports
- HDMI and VGA, 4K
- 4 alarm in, 2 out
- Fisheye dewarp
- ONVIF support
Product Information
Quantity Supported: 4
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XRN-1620SB1
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTP, RTSP, SMTP, SNMP, SSM, TCP/IP, UDP/IP, UPnP
Network Ports: 10/100Base-TX x 16 (PoE/PoE+) / 1000Base-T x 2
Features #2: 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Fisheye Dewarp function, Pan/Tilt/Zoom support, Smartphone support, SmartViewer, Webviewer
Capacity: 24 TB
Operating System Edition: Linux
Features: 802.1x authentication, GOP control, Hallway view, Hanwha DDNS, IP address filtering, ONVIF support
Features: 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, Fisheye Dewarp function, Pan/Tilt/Zoom support, Smartphone support, SmartViewer, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 1
Video Output Ports: HDMI x 1, VGA x 1
Audio Channels: 16
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 310 watt
Memory and Processor
Supported Max Total Capacity: 24 TB
Technical Information
Alarm Ports: Alarm input x 4, Alarm output x 2
Display Modes: 13 split screens, 16 split screens, 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, Sequence
Frame Rate (Playback): 12 fps, 15 fps, 200 fps, 240 fps, 25 fps, 270 fps, 30 fps, 480 fps, 50 fps, 90 fps
IP Cameras Supported: 16
Playback Search: Date/time, Event, Smart search, Text
Record Events: Alarm, Continuous, Event, Motion detection, Scheduled, Video loss
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, JPEG, MJPEG
Video Channels: 16
Image Resolution: 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.7 lbs
Certifications and Listing
Compliant Standards: CE/EAC, cUL, FCC, Plug and Play, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
