Product Information

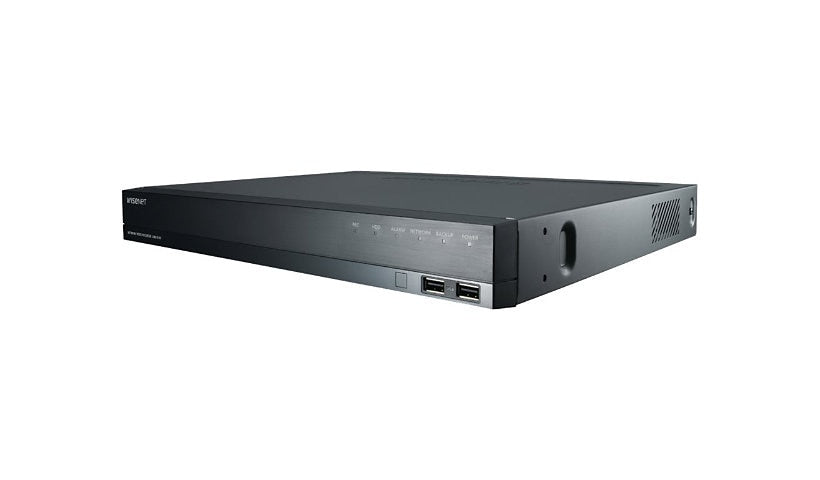

The Hanwha Wisenet X XRN-820S (XRN-820S-4TB) is a 1U 8 channel NVR with 8 PoE/PoE+ ports and a gigabit uplink, 4 TB installed and 2 bays for up to 12 TB. It outputs 4K over HDMI with a VGA port too, has 8 audio channels, 4 alarm inputs and 2 outputs, PTZ control and smartphone viewing. Black.
Key Features
- 8 channels
- 8 PoE+ ports
- 4 TB installed
- Up to 12 TB
- 4K HDMI, VGA
- 1U rack mount
Product Information
Quantity Supported: 2
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XRN-820S
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX, Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTP, RTSP, SMTP, SNMP, SSM, TCP/IP, UDP/IP, UPnP
Network Ports: 10/100Base-TX x 8 (PoE/PoE+) / 1000Base-T x 1
Features #2: 300 PTZ position presets, Pan/Tilt/Zoom support, Power over Ethernet (PoE), Smartphone support, SmartViewer, Webviewer
Capacity: 4 TB
Operating System Edition: Linux
Features: 802.1x authentication, IP address filtering, ONVIF support, Power over Ethernet (PoE)
Features: 300 PTZ position presets, Pan/Tilt/Zoom support, Power over Ethernet (PoE), Smartphone support, SmartViewer, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 1
Audio Outputs: RCA x 1
Video Output Ports: HDMI x 1, VGA x 1
Audio Channels: 8
Power
Input Voltage: 120 / 230 V
Frequency: 50/60 Hz
Memory and Processor
Supported Max Total Capacity: 12 TB
Technical Information
Alarm Ports: Alarm input x 4, Alarm output x 2
Display Modes: 4 split screens, 6 split screens, 8 split screens, 9 split screens, Sequence
Frame Rate (Playback): 15 fps, 200 fps, 240 fps, 270 fps, 30 fps, 480 fps, 50 fps, 90 fps
IP Cameras Supported: 8
Playback Search: Date/time, Event, Smart search, Text
Record Events: Alarm, Continuous, Event, Motion detection, Scheduled, Video loss
Networked: Yes
Compression Format: AAC, G.711, G.726, H.264, H.265, MJPEG
Video Channels: 8
Image Resolution: 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 2 inch
Width: 14.6 inch
Depth: 12.8 inch
Certifications and Listing
Compliant Standards: Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
