Product Information

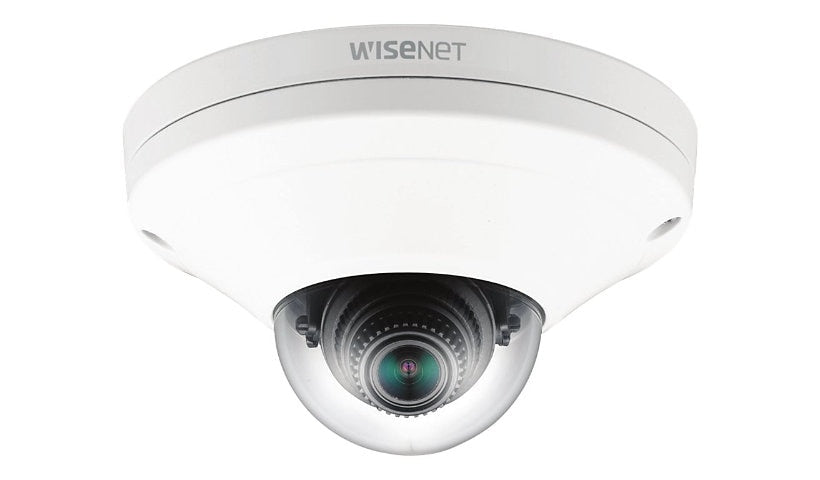

The Hanwha XNV-6011W is a 2 MP outdoor vandal dome that streams 1080p at up to 60 fps through a fixed 2.8 mm lens with a 112 degree horizontal view. It adds defog, digital image stabilization and a composite video output, and draws 6.5 W from PoE Class 3. White finish. The source title only reads "Fixed Lens - LP", please confirm the model before listing.
Key Features
- 2 MP, 1080p60
- 2.8 mm, 112 degrees
- Defog and DIS
- Composite output
- PoE Class 3, 6.5 W
- Outdoor vandal, white
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet X
Model: XNV-6011W
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Features: 2D Digital Noise Reduction Technology, 3D Noise Filtering, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Directional Motion Detection, Face Detection, Fog detection, Hallway View, Heat Map, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, People counting, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Ports: Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 6.5 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Focus Modes: Manual
Video Signals: Composite video
Sensor Pixels Effective (H): 1945
Sensor Pixels Effective (V): 1097
Video Capture: 1920 x 1080 @ 60 fps
Sensor Pixels Total (H): 1945
Sensor Pixels Total (V): 1109
Tilt: 0 to 59
Motion Detection: Yes
Panning Range (degree): 0 to 353
Angular Field of View (H, Min, Degree): 112
Angular Field of View (V, Min, Degree): 62
Min Focus Distance: 7.9 inch
Minimum Illumination: 0.055 lux - B&W - F2.0 - shutter 1/30 sec, 0.055 lux - color - F2.0 - shutter 1/30 sec
Total Pixels: 2,160,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input: Color
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.5 inch
Width: 4.4 inch
Depth: 4.4 inch
Weight: 14.81 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
