Product Information

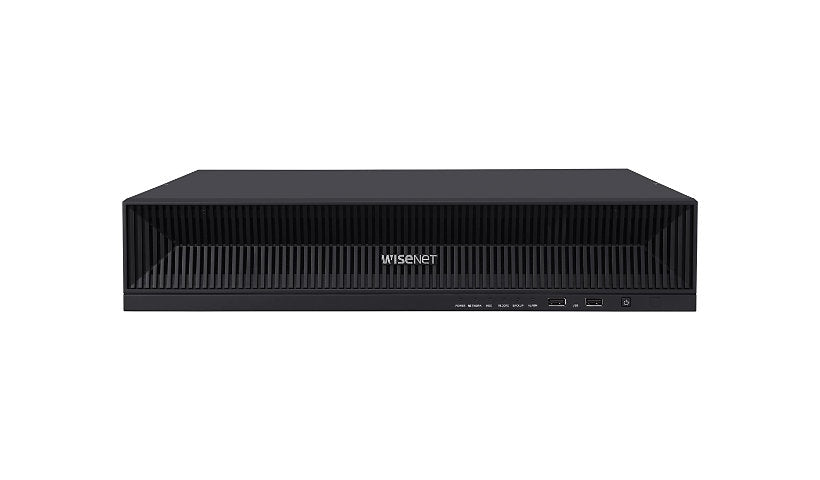

The Hanwha Wisenet XRN-1620B2 (XRN-1620B2-24TB) is a 16 channel NVR with 24 TB installed and 8 SATA bays for up to 80 TB, recording up to 32 MP. It has HDMI and VGA outputs up to 4K, two gigabit ports, 16 audio channels, two way audio, 4 alarm inputs and 2 outputs and fisheye dewarping. 130 W, black.
Key Features
- 16 channels
- 24 TB installed
- 8 bays, up to 80 TB
- 4K HDMI, VGA
- 4 alarm in, 2 out
- Two way audio
Product Information
Quantity Supported: 8
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet
Model: XRN-1620B2
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, CGI, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, RTP, RTSP, SDK, SMTP, SNMP, SSM, SUNAPI, TCP/IP, UDP/IP, UPnP
Network Ports: 10/100/1000Base-T x 2
Features #2: 2-way audio communication, 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, E-mail alarm notifications, Fisheye Dewarp function, Recording data rate up to 140 Mbps, Webviewer
Capacity: 24 TB
Operating System Edition: Linux
Features: 802.1x authentication, GOP control, Hallway view, Hanwha DDNS, IP address filtering, Multicast mode, Source-Specific Multicast (SSM), Unicast mode
Features: 2-way audio communication, 300 PTZ position presets, Auto Recovery Backup (ARB), Brightness adjustment, Contrast adjustment, E-mail alarm notifications, Fisheye Dewarp function, Recording data rate up to 140 Mbps, Webviewer
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 1
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 1, VGA x 1
Audio Channels: 16
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 130 watt
Memory and Processor
Supported Max Total Capacity: 80 TB
Technical Information
Alarm Ports: Alarm input x 4, Alarm output x 2
Browser: Edge/Safari/Firefox/Google Chrome
Display Modes: 13 split screens, 16 split screens, 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, Sequence
Frame Rate (Playback): 12 fps, 15 fps, 200 fps, 240 fps, 270 fps, 30 fps, 480 fps, 50 fps
IP Cameras Supported: 16
Operating Systems: Android, Apple iOS, macOS 10.13, Windows 10
Playback Search: Date/time, Event, Smart search, Text
Record Events: Alarm, Analytics, Audio detection, Defocus detection, Motion detection, Sensor, Video loss
Video Recording Resolution: 32 Megapixels, CIF
Networked: Yes
Interface: Serial ATA
Compression Format: AAC, AVI, G.711, G.726, H.264, H.265, MJPEG
Video Channels: 16
Image Resolution: 1920x1080, 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.59 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
