Product Information

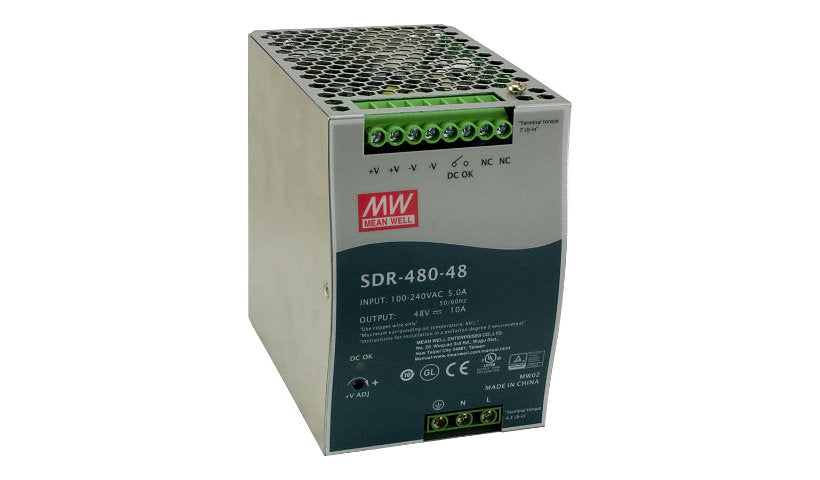

The 25160 is a hardened 480 W DIN rail power supply listed under Mean Well, while the description names Transition Networks, so please confirm the brand. It delivers 48 to 55 V DC at up to 10 A from 90 to 264 V AC or 127 to 370 V DC input, with 94 percent efficiency and 150 percent peak load. It is convection cooled, has LED indicators, guards against overload, overheating, over voltage and short circuit, and is UL 508 approved. TAA compliant.
Key Features
- 480 W DIN rail PSU
- 48 to 55 V DC output
- 94% efficiency
- 150% peak load
- UL 508, full protection
- TAA compliant
Product Information
Brand: Mean Well
Manufacturer: Transition Networks
Product Line: Mean Well
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Blue, Gray
Power
Input Voltage Range: AC 90 - 264 / DC 127 - 370 V
Required Voltage: AC 90 - 264 volt
Frequency: 47 - 63 hertz
Power Device Features: Convection cooling, LED indicators, Overheat protection, Overload protection
Power Provided: 480 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Max Input Current: 10 ampere
Efficiency: 94%
Provided Voltage: DC 48 - 55 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
MTBF: 112.900 Hours
Dimensions and Weight
Height: 6 inch
Width: 3.4 inch
Depth: 5.1 inch
Weight: 3.53 lbs
Certifications and Listing
Compliant Standards: CISPR 32, cULus, EAC, EN 50082-2, EN 55011, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61204-3, EN55024, GL, IEC 60068-2-6, NDAA, RoHS, SEMI F47, TUV, UL 508
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
