Product Information

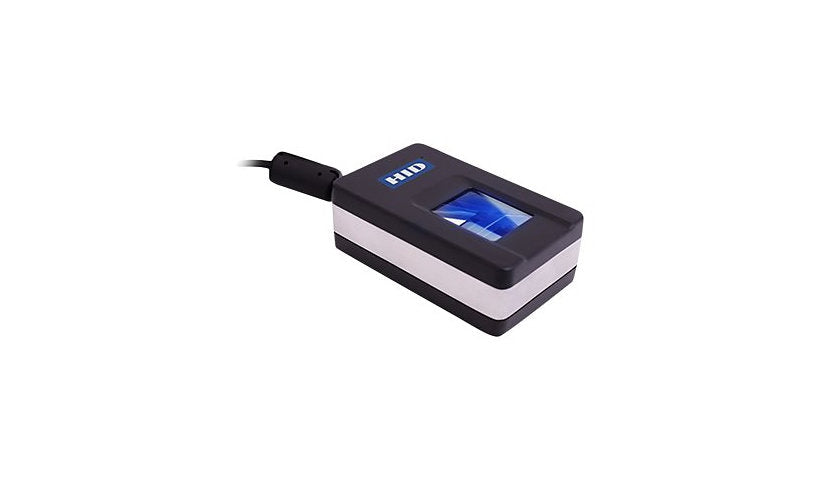

The HID DigitalPersona 5300 is a compact optical fingerprint reader certified to FIPS 201/PIV and Mobile ID FAP 30, capturing 500 dpi images across a 0.8 x 1 inch area with fake finger rejection. Its IP64 glass platen resists chemical and physical damage. It runs on USB 2.0 at 5 V, drawing 150 mA operating.
Key Features
- Optical fingerprint, 500 dpi
- FIPS 201/PIV, FAP 30
- Fake finger rejection
- IP64 glass platen
- 0.8 x 1 inch sensor area
- USB 2.0 powered
Product Information
Brand: HID
Product Line: HID DigitalPersona
Model: 5300
Packaged Quantity: 1
Color Category: Black, Gray
Connectivity
Interface Type: USB 2.0
Input Adapter Type: Fingerprint reader
Interface Required Connections: 1 x USB 2.0
Power
Required Voltage: DC 5 volt
Electric Current Required: 150 mA (operating), 40 mA (idle)
Technical Information
Device Features: USB powered
Image Resolution: 500 dpi
Sensor Area: 0.8 in x 1 in
Touchscreen: No
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 1.2 inch
Width: 2.1 inch
Depth: 3.4 inch
Weight: 8.64 ounce
Certifications and Listing
Compliant Standards: FAP 30, FCC, FIPS 201 PIV, IEC 61000-4-2 Level 3, IP64, RoHS, UL, WEEE
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
