Product Information

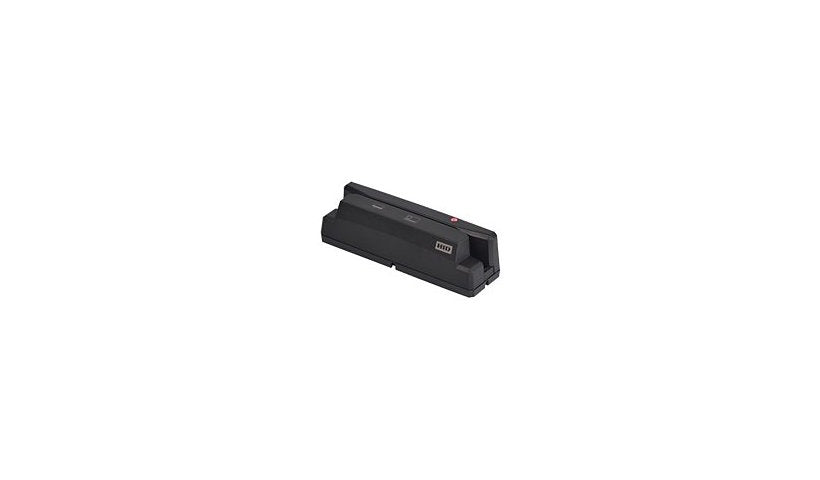

The HID OCR316-E reads machine readable travel documents to ICAO 9303 and magnetic stripe cards on tracks 1, 2 and 3. It connects over USB 2.0 with a 6 ft cable, gives green/red LED and beeper feedback, has flash upgradeable software and can stand free, mount on a desk or attach to a VESA monitor mount.
Key Features
- ICAO 9303 OCR document reading
- 3-track magnetic stripe, ISO 7811
- USB 2.0, 6 ft cable, USB powered
- LED and beeper feedback
- Freestanding, desk or VESA mount
- Dark gray, compact
Product Information
Brand: HID
Product Line: HID
Model: OCR316-E
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Operating System Required: Android, Linux, Microsoft Windows 7 or later
Connectivity
Interface Type: CDC, USB 2.0
Input Adapter Type: OCR / magnetic card reader
Interface Required Connections: 1 x USB
Technical Information
ISO Card Tracks: Tracks 1, 2 & 3
Device Features: ABS composition, Machine Readable Travel Documents (MRTD) support, USB powered
OK Notification: Beeper, LED indicator
Recording Standard: ICAO 9303, ISO 7811, ISO/IEC 18013-1, ISO/IEC 7501-1
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 1.8 inch
Width: 5.9 inch
Depth: 1.7 inch
Weight: 7.05 ounce
Included Items
Cables: 1 x USB cable - 6 ft
Certifications and Listing
Compliant Standards: EN 55032 Class B, EN 55035, EN 62368-1, FCC CFR47 Part 15 A, ISO 7811
