Product Information

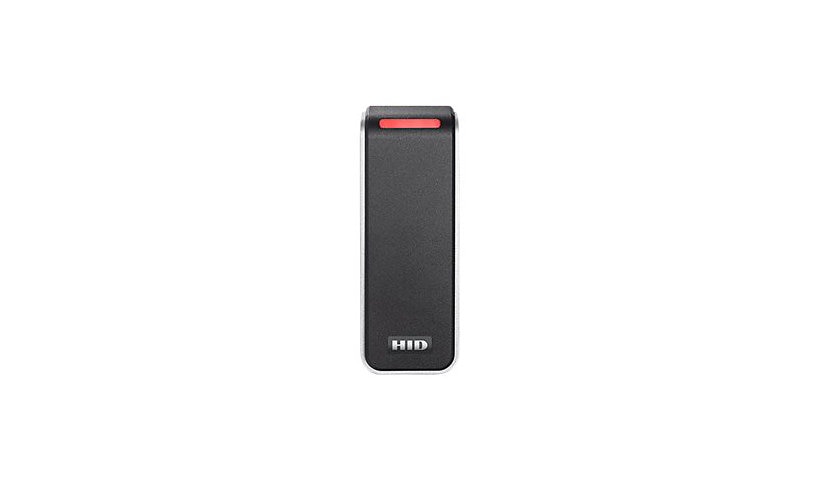

The HID Signo 20 is a mullion size access reader from HID's Signo line, wired to a terminal strip over OSDP or Wiegand. It reads 125 kHz, 13.56 MHz and 2.4 GHz credentials such as HID Prox, iCLASS SE/Seos, MIFARE, DESFire and FeliCa, with mobile, NFC, Bluetooth and Apple ECP support. It carries a limited lifetime warranty.
Key Features
- Mullion or surface mount
- 125 kHz, 13.56 MHz and 2.4 GHz
- HID Prox, iCLASS SE/Seos, DESFire, FeliCa
- Mobile, NFC, Bluetooth, Apple ECP
- OSDP and Wiegand, terminal strip, 12 V DC
- Black with silver trim, limited lifetime warranty
Product Information
Brand: HID
Product Line: HID Signo
Model: 20
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim, Green flash
Color Category: Black, Silver
Network and Communication
Features #2: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), LED Indicator, Mobile ready, Mullion mountable, Pigtail connection, Surface mountable
Connectivity Technology: Wired
Data Link Protocols: Wiegand
Wired Protocol: Wiegand
Features: Open Supervised Device Protocol (OSDP)
Features: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), LED Indicator, Mobile ready, Mullion mountable, Pigtail connection, Surface mountable
Connectivity
Interfaces: Relay output, Wiegand
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: AWID Proximity, Contactless e-Purse Application Specification (CEPAS), EM4102 Prox, FeliCa, HID iCLASS SE, HID iCLASS Seos, HID iCLASS SR, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID Prox, Indala Prox
Functions: Access control
Touchscreen: No
Integrated Components: Bluetooth adapter, Buzzer, NFC reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Dimensions and Weight
Height: 4.8 inch
Width: 1.8 inch
Depth: 0.8 inch
Weight: 3.35 ounce
Certifications and Listing
Compliant Standards: cUL, EAL 5+, FCC, IC, iDA, IP65, ISO 14443 type A, KCC, MIC, NCC, RCM, RoHS, SRRC, UL 294, UL 94 V-0
Warranty
Limited Warranty: Limited Lifetime
