Product Information

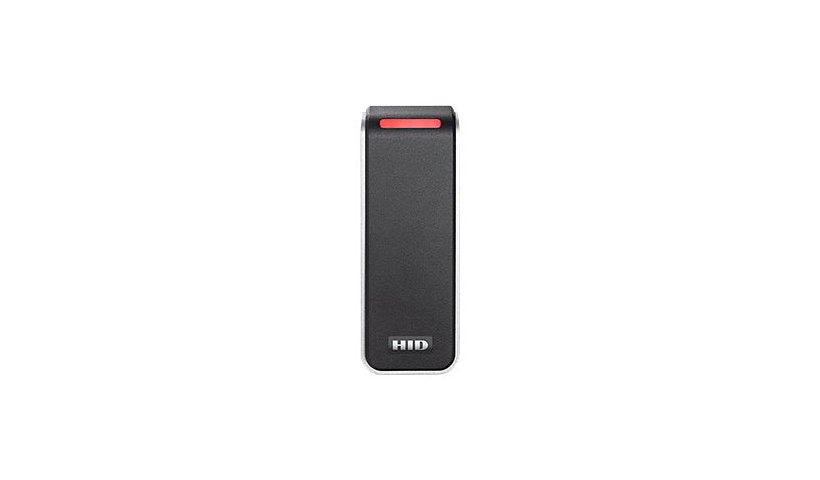

The HID Signo 20 20NKS-OO-00038P is a narrow access reader reading 125 kHz, 13.56 MHz and 2.4 GHz credentials such as HID Prox, iCLASS, Seos, MIFARE DESFire EV1 to EV3, FeliCa, AWID and Indala, plus mobile and Apple ECP. It connects by OSDP over RS-485 or Wiegand on 12 V DC with a 0.5 m pigtail and is rated for indoor or outdoor use.
Key Features
- Narrow reader format
- 125 kHz, 13.56 MHz, 2.4 GHz
- Mobile ready, Apple ECP
- OSDP RS-485 or Wiegand
- 12 V DC, 0.5 m cable
- Black with silver trim
Product Information
Brand: HID
Product Line: HID Signo
Model: 20
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim
Color Category: Black, Silver
Network and Communication
Features #2: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), LED Indicator, Mobile ready, Pigtail connection
Connectivity Technology: Wired
Data Link Protocols: RS-485, Wiegand
Wired Protocol: Serial RS-485/Wiegand
Features: Half duplex mode, Open Supervised Device Protocol (OSDP)
Features: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), LED Indicator, Mobile ready, Pigtail connection
Connectivity
Interfaces: Relay output, Wiegand
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: AWID Proximity, Contactless e-Purse Application Specification (CEPAS), EM prox, FeliCa, HID iCLASS, HID iCLASS SE, HID iCLASS Seos, HID iCLASS SR, HID MIFARE, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3, HID Prox, Indala Prox
Functions: Access control
Touchscreen: No
Integrated Components: Bluetooth adapter, Buzzer, NFC reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Dimensions and Weight
Height: 4.8 inch
Width: 1.8 inch
Depth: 0.8 inch
Weight: 3.35 ounce
Included Items
Included Accessories: Cable (0.5 m)
Certifications and Listing
Compliant Standards: BIS, cUL, EAL 5+, FCC, Greencircle, IC, iDA, IP65, ISO 14443 type A, KCC, MIC, NCC, RCM, RoHS, SIG, SRRC, UL 294, UL 94 V-0, WPC
