Product Information

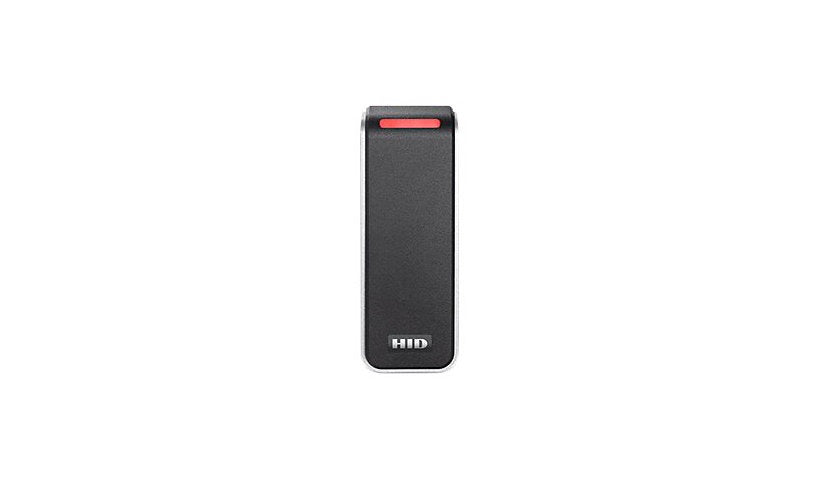

The HID Signo 20 PIV is a narrow reader that reads contactless PIV cards with a CAK certificate when used with pivCLASS PAM or Embedded Authentication, plus HID Prox, iCLASS SE, Seos, MIFARE, DESFire, FeliCa, AWID, Indala and EM4102. It reads CHUID, connects by OSDP over RS-485, Wiegand or clock and data on 12 V DC at 250 mA and mounts flush. Limited lifetime warranty.
Key Features
- PIV reader, narrow profile
- Works with pivCLASS PAM
- 125 kHz and 13.56 MHz
- OSDP, Wiegand, clock and data
- 12 V DC, 250 mA, pigtail
- Limited lifetime warranty
Product Information
Brand: HID
Product Line: HID Signo
Model: 20 PIV
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim
Color Category: Black, Silver
Network and Communication
Features #2: 125 kHz card technology, 13.56 MHz card technology, Card Holder Unique IDentifier (CHUID), Flush mountable, LED Indicator, Prox support
Connectivity Technology: Wired
Data Link Protocols: Clock-and-Data, RS-485, Wiegand
Wired Protocol: Clock-and-Data/serial RS-485/Wiegand
Features: Open Supervised Device Protocol (OSDP)
Features: 125 kHz card technology, 13.56 MHz card technology, Card Holder Unique IDentifier (CHUID), Flush mountable, LED Indicator, Prox support
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: AWID Proximity, Contactless e-Purse Application Specification (CEPAS), EM4102 Prox, FeliCa, HID iCLASS SE, HID iCLASS Seos, HID iCLASS SR, HID MIFARE Classic, HID MIFARE CSN, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE Sio, HID Prox, Indala Prox
Functions: Access control
Rated Current: 250 milliampere
Touchscreen: No
Integrated Components: Buzzer, NFC reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Certifications and Listing
Compliant Standards: BAA, CAK, CB, CIV, FCC, FICAM, FIPS 201 PIV, FRAC, IP65, ISO 14443 type A, NIST SP800-116, PIV, PIV-I, TWIC, UL 294, UL 94 V-0
Warranty
Limited Warranty: Limited Lifetime
