Product Information

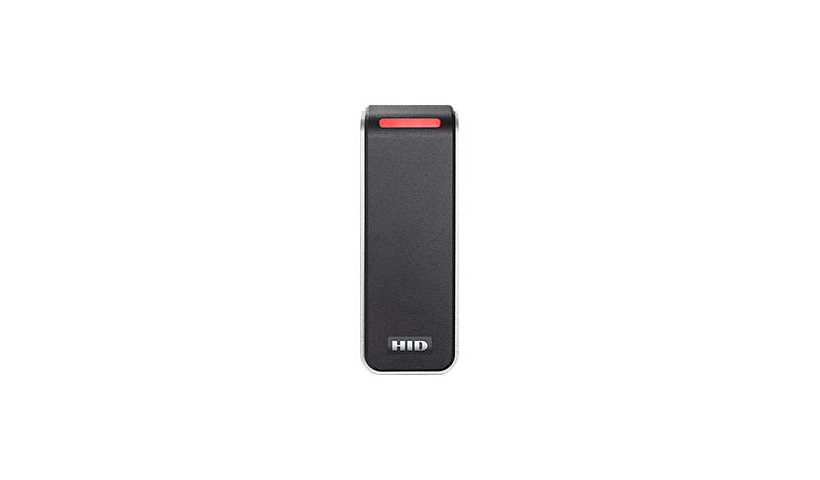

The HID Signo 20 20NKS-00-001TCX is a narrow reader that mounts on a mullion or surface and reads 125 kHz, 13.56 MHz and 2.4 GHz credentials such as HID Prox, iCLASS SE, Seos, MIFARE DESFire, AWID, EM4102 and Indala, plus mobile and Apple ECP. It uses Wiegand or OSDP on 12 V DC with a 0.5 m pigtail. Black with silver trim, green flash.
Key Features
- Mullion or surface mount
- 125 kHz, 13.56 MHz, 2.4 GHz
- Mobile ready, Apple ECP
- Wiegand or OSDP, 12 V DC
- 0.5 m pigtail
- Indoor or outdoor
Product Information
Brand: HID
Product Line: HID Signo
Model: 20
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim, Green flash
Color Category: Black, Silver
Network and Communication
Features #2: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), Mobile ready, Mullion mountable, Pigtail connection, Red LED indicator, Surface mountable
Connectivity Technology: Wired
Data Link Protocols: Wiegand
Wired Protocol: Wiegand
Features: Open Supervised Device Protocol (OSDP)
Features: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), Mobile ready, Mullion mountable, Pigtail connection, Red LED indicator, Surface mountable
Connectivity
Interfaces: Relay output, Wiegand
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: AWID Proximity, EM4102 Prox, HID iCLASS SE, HID iCLASS Seos, HID iCLASS SR, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID Prox, Indala Prox
Functions: Access control
Touchscreen: No
Integrated Components: Bluetooth adapter, Buzzer, NFC reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Dimensions and Weight
Height: 4.8 inch
Width: 1.8 inch
Depth: 0.8 inch
Weight: 3.35 ounce
Included Items
Included Accessories: Cable (0.5 m)
Certifications and Listing
Compliant Standards: cUL, EAL 5+, FCC, IC, iDA, IP65, ISO 14443 type A, KCC, MIC, NCC, RCM, RoHS, SRRC, UL 294, UL 94 V-0
