Product Information

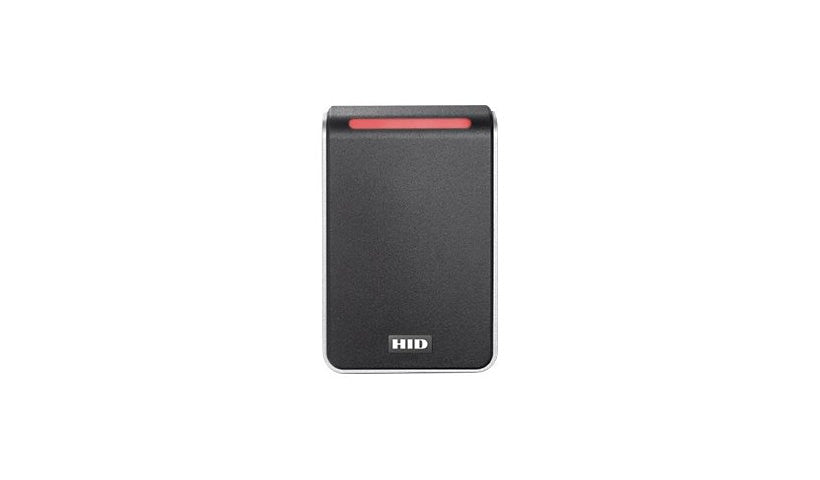

The HID Signo 40 is a wall switch size access control reader that reads HID Prox, iCLASS, iCLASS SE/Seos, EM4102, Indala and SIO on MIFARE credentials across 125 kHz, 13.56 MHz and 2.4 GHz. It supports mobile credentials, Apple ECP, NFC and Bluetooth, and wires over Wiegand to a terminal strip. It is rated for indoor and outdoor use and carries a limited lifetime warranty.
Key Features
- 125 kHz, 13.56 MHz and 2.4 GHz
- HID Prox, iCLASS SE/Seos, EM4102, Indala, SIO
- Mobile, Apple ECP, NFC and Bluetooth
- Wiegand, terminal strip, 12 V DC
- Wall mount, indoor/outdoor, polycarbonate
- Limited lifetime warranty
Product Information
Brand: HID
Product Line: HID Signo
Model: 40
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim
Color Category: Black, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Wiegand
Wired Protocol: Wiegand
Features: 125 kHz card technology, 13.56 MHz card technology, 2.4 GHz card technology, Apple Enhanced Contactless Polling (ECP), LED Indicator, Mobile ready, Terminal strip connection, Wall Mountable
Connectivity
Interfaces: Relay output, Wiegand
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: EM4102 Prox, HID iCLASS, HID iCLASS SE, HID iCLASS SE (SIO-enabled), HID iCLASS Seos, HID iCLASS SR, HID Prox, Indala Prox, SIO on MIFARE Classic, SIO on MIFARE DESFire EV1
Functions: Access control
Touchscreen: No
Integrated Components: Bluetooth adapter, Buzzer, NFC reader, Proximity reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Dimensions and Weight
Height: 4.8 inch
Width: 3.1 inch
Depth: 0.8 inch
Weight: 4.23 ounce
Certifications and Listing
Compliant Standards: cUL, EAL 5+, FCC, IC, iDA, IP65, ISO 14443 type A, KCC, MIC, NCC, RCM, RoHS, SRRC, UL 294, UL 94 V-0
Warranty
Limited Warranty: Limited Lifetime
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
